We hold four core technologies: ROIC Design, MEMS Pixel Design, MEMS Process, Vacuum Encapsulation and Lithography. We realize independent and controllable full processes from R&D to mass production for the entire lithography detector series, with an annual production capacity of over 10 million various visual sensors.

widely applied in industrial fields including industrial temperature measurement, security monitoring, fire protection, outdoor operations, as well as law enforcement and search & rescue.

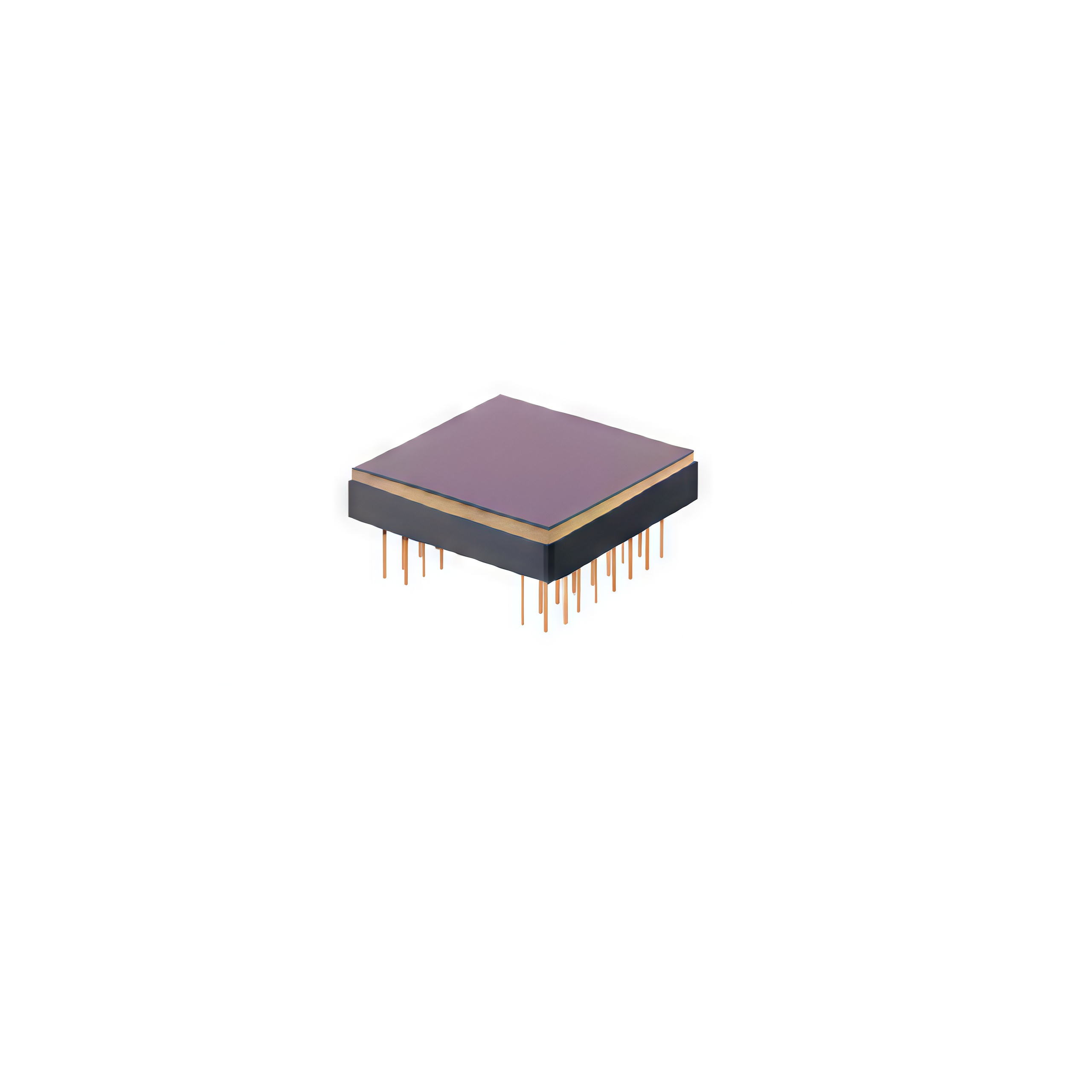

Long-Wave Infrared Detector,Non-cooled Infrared Detector,Ceramic Package LWIR Sensor,LW6417HK

Pixel array: 640×512

Pixel center distance: 17 μm

Response band: 8 μm - 14 μm

NETD: ≤ 40 mk (@ F1.0, 300K)

Output signal: Analog

Thermal response time: 10 ms

Frame rate: 50 Hz

Power consumption: ≤ 150 mW @ 300K

Postting form: Ceramic tube shell/TECless

Working mode: No TEC, OOC

Operating temperature range: -40°C ~ 85°C

Chip size: 22.86X22.86X3.53mm

Weight: 6.3 ± 0.1g
