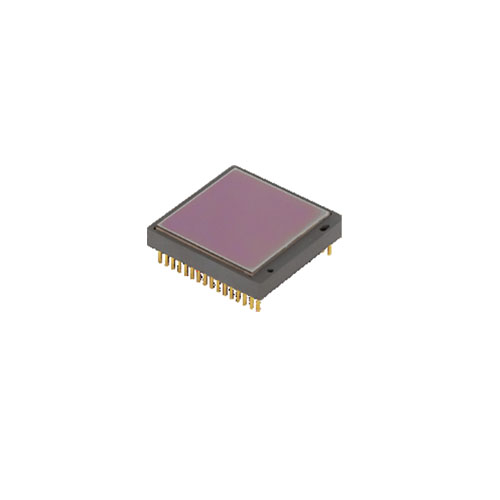

This ceramic-packaged infrared detector features core advantages of ultra-lightweight (≤5.5g) and compact size (22×22×4.68mm³, excluding pin dimensions). It offers two optional pixel arrays (384×288/640×512 ) to adapt to long-wave infrared (LWIR) scenarios with different precision requirements, such as portable infrared thermometers (meeting the lightweight needs of handheld devices), small security monitoring equipment (low power consumption for 24/7 operation), and small industrial detection terminals (high-precision capture of abnormal heat signals from equipment).

Pixel array: 384×288 / 640×512

Output signal: Digital output

Pixel center distance: 12 μm

Package form: 32-pin ceramic vacuum package

Readout method: Row-by-row reading

Response wavelength band: LWIR, 8 μm - 14 μm

Product weight: ≤ 5.5g

NETD: ≤ 40 mk (@f/1.0, 50Hz 300K)

Power consumption: ≤ 180 mW @ 50Hz, 300K)

Frame frequency: 50Hz

Package size: 22×22×4.68mm³ (excluding pin size)
