We hold four core technologies: ROIC Design, MEMS Pixel Design, MEMS Process, Vacuum Encapsulation and Lithography. We realize independent and controllable full processes from R&D to mass production for the entire lithography detector series, with an annual production capacity of over 10 million various visual sensors.

widely applied in industrial fields including industrial temperature measurement, security monitoring, fire protection, outdoor operations, as well as law enforcement and search & rescue.

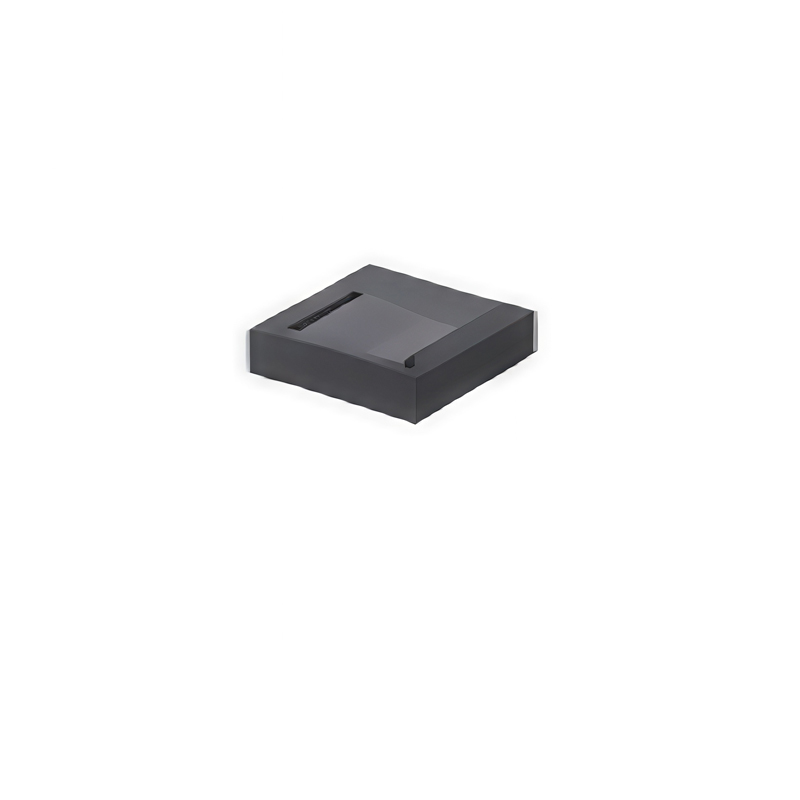

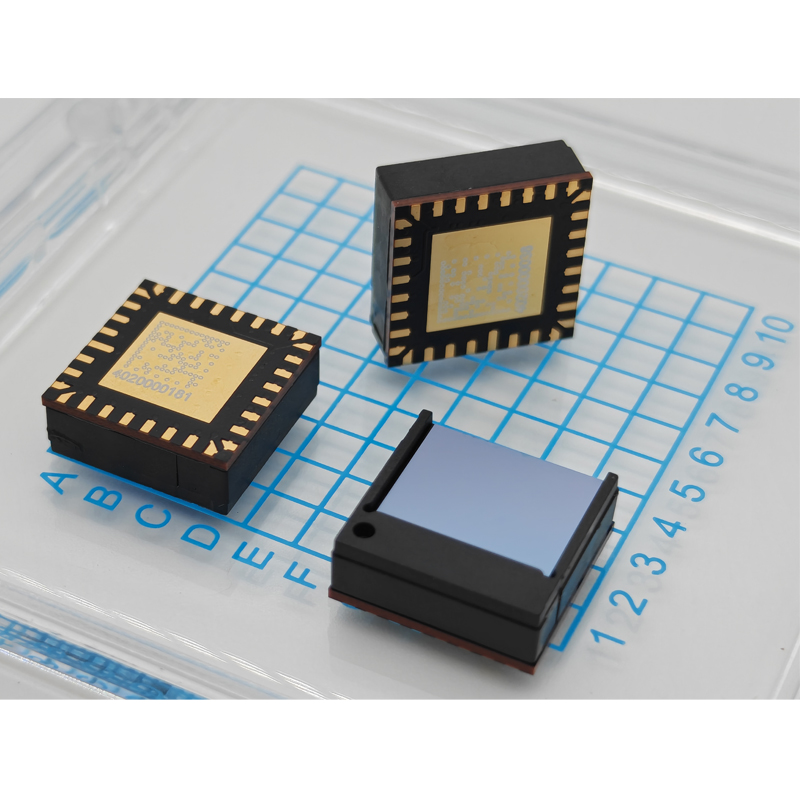

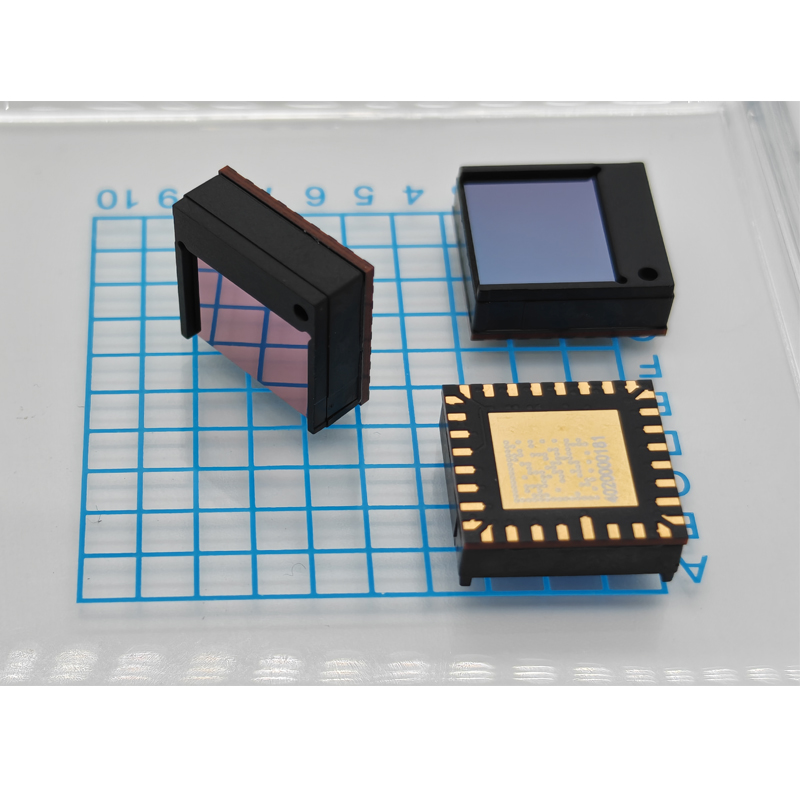

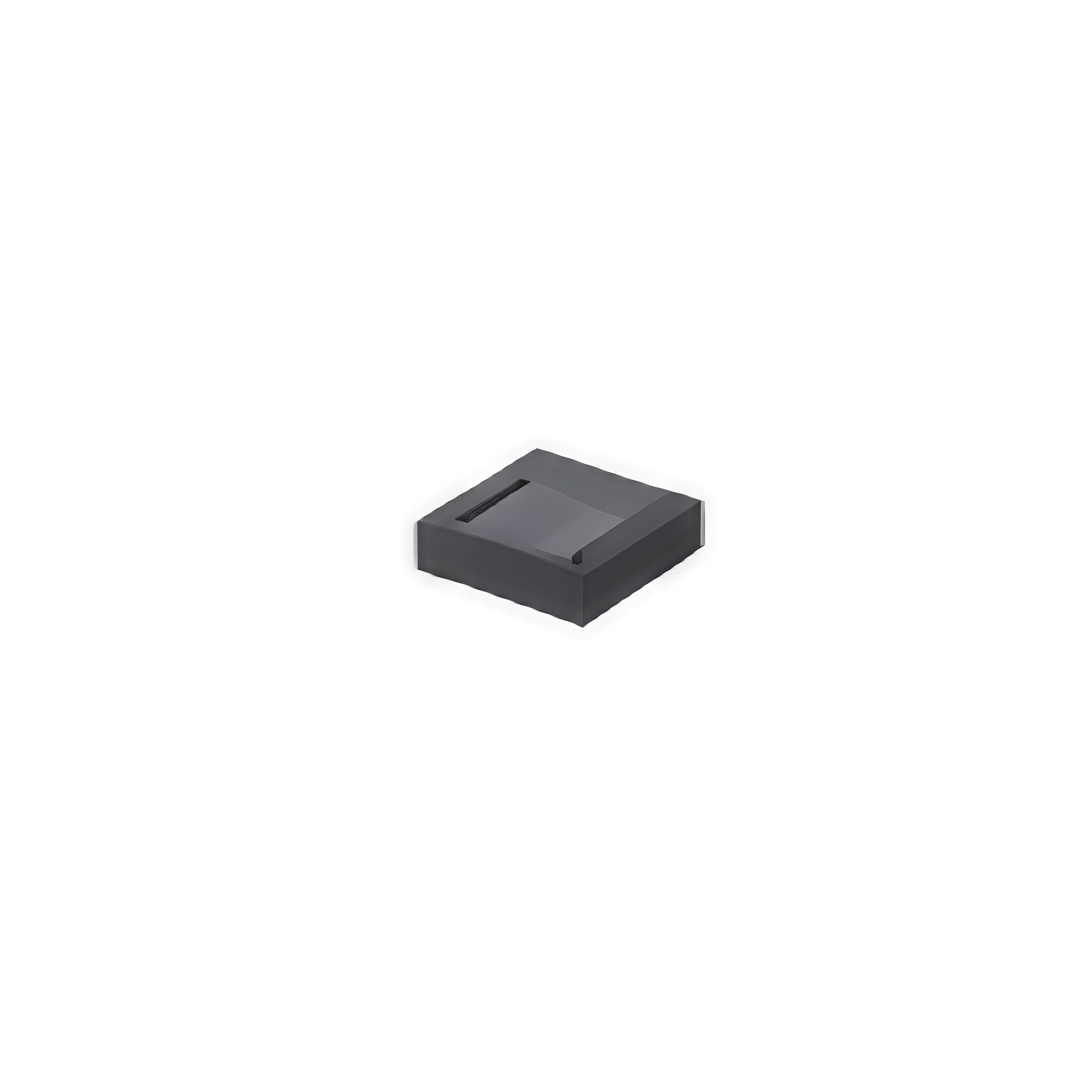

Long-Wave Infrared Detector,Non-cooled Infrared Detector,Ceramic Package LWIR Sensor,LW2512QFN

Pixel array: 256×192

Pixel center distance: 12 μm

Response band: 8 μm - 14 μm

NETD: ≤ 50 mk (@ F1.0, 300K)

Output signal: Digital 16bit, 8 channels

Thermal response time: 12 ms

Frame rate: 25Hz

Power consumption: ≤ 75 mW @ 300K

Postting form: QFN postting

Operating mode: No TEC, OOC

Operating temperature range: -40°C ~ 85°C

Chip size: 10×10×1.9 mm

Weight: 0.3 ± 0.05 g
