The working conditions and main performance parameters of the infrared focal plane array detector.

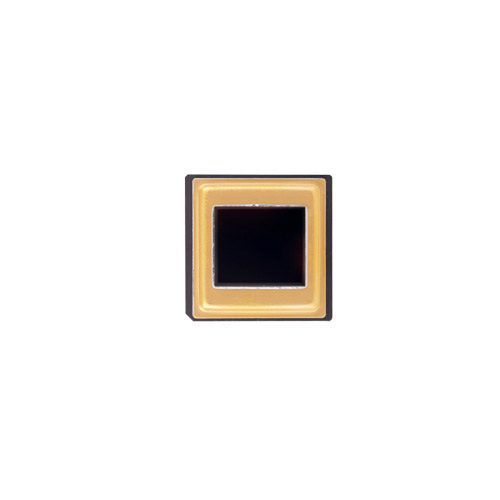

The detector is a micro radiometric sensor based on CMOS-MEMS technology.

This detector consists of a 640×512-pixel array with 12μm×12μm pixel size, and its spectral response range is 8μm to 14μm.

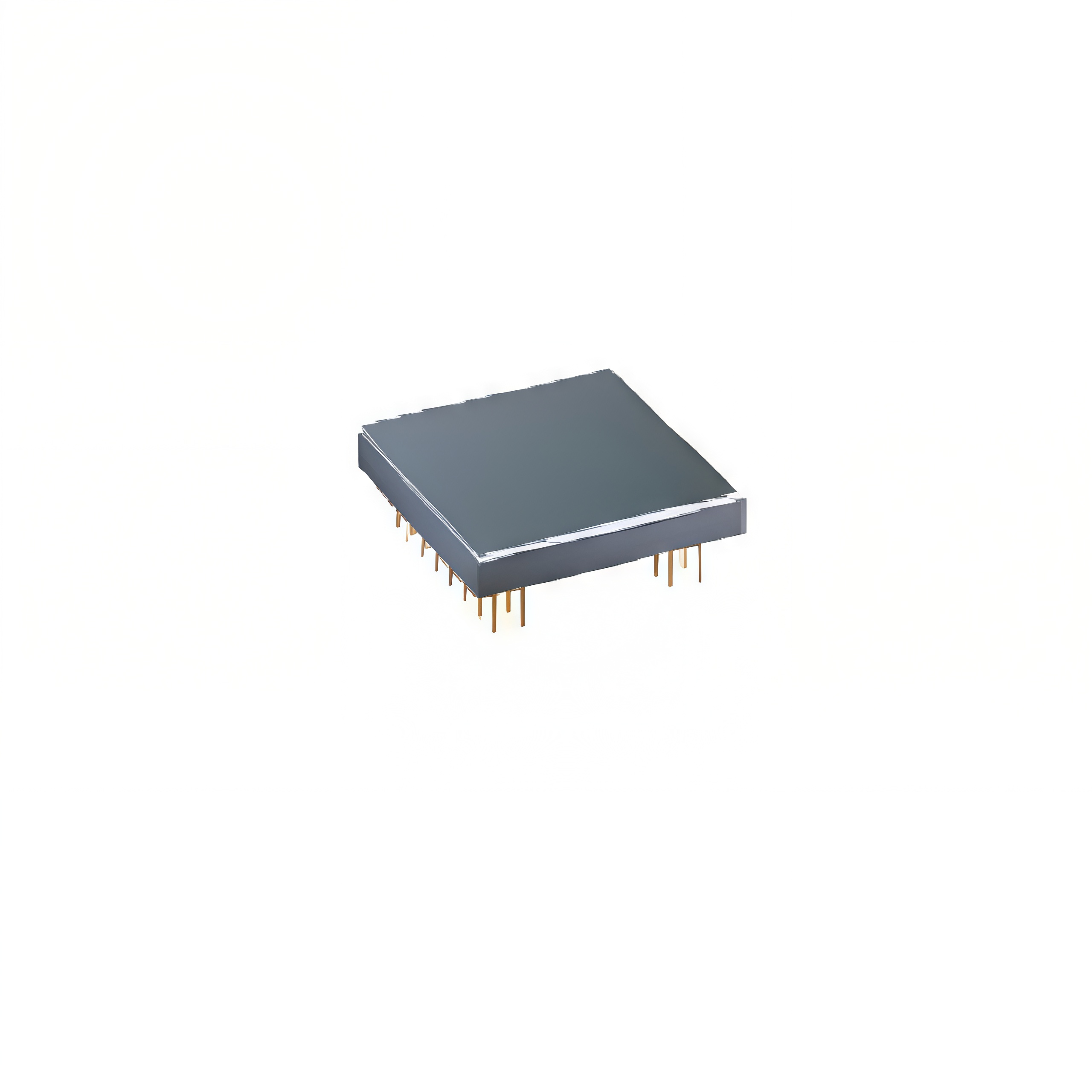

 Detector is encapsulated in a vacuum ceramic package and contains a non-evaporative absorbent to ensure long-term vacuum life inside.

 The detector adopts a line-by-line reading mode and provides 14-bit digital signal output.

uncooled infrared detector, VOx vs a-si，Raytron, Vanadium oxide detector,polymr microbolometer, Uncooled ir fpa,Microbolometer,IR fpa

Sensor Technology: Vanadium Oxide Micro-Optical Thermometer for Radiation Measurement

Pixel Array: 640×512

Output Signal: Digital Output

Pixel Spacing: 12μm×12μm

Spectral Response Bandwidth: 8-14μm

Frame Rate: 50Hz

Weight: ≤4g

Package Size: 19×20×4mm³ (excluding pin size)

Advantages: High sensitivity, low power consumption, reliability and easy integration, internal temperature sensor integrated in the chip, operates at room temperature, gain adjustable
