Uncooled infrared focal plane array detector is suitable for long wavelength(8~14um) infrared imaging. The array format is 640*512(exclude dummy pixels), the pixel size is 12*12, the heat response time is less than 10ms and the frame frequency can reach 60HZ.

Under the condition of F#1.0, the typical NETD is less than 40mk, typical response rate is 100~150cnts/K.  can operate normally under the temperature of -40℃~+85℃ and the typical power consumption is less than 170mw at room temperature. The sensitivity and power consumption of detector will change a little when temperature changes. Temperature sensor is integrated in the chip but there is no TEC temperature control module inside.                                                                                                                                                                                                                                                                           Non-uniformity correction function(OOC) is integrated in the chip. The correction data can be written in the chip through 6bits Non-uniformity correction data channel in real time to decrease the non-uniformity of output. In addition, can set the specific function such as integration time, integration capacitor, output sequence, output gain selection and so on through the peripheral interface(Smart Data) .

FL640 uncooled infrared detector, uncooled thermal camera, uncooled thermal imager

Sensor Technology: Vanadium Oxide Micro-Active Radiometer

Spectral Response Band: 8 - 14 μm

Pixel Center Distance: 12 μm

Array Size: 640 × 512 (excluding dummy pixels)

Operational Rate: ≥ 99.5%

Noise Equivalent Temperature Difference (NETD): < 40 mK (@ f/1.0, 50 Hz, 300 K)

Thermal Time Constant: < 10 ms

Frame Rate: ≤ 60 Hz

Power Consumption: < 170 mW (@ 50 Hz, 25°C)

Digital Output Bit Count: 14 bits

Wide Dynamic Range Mode: Supports temperature measurement from -40°C to 600°C (@ f/1.0)

Readout Mode: Row-by-row Reading

Mirroring Function: X-direction, Y-direction Mirroring

Non-uniformity Correction Function: On-chip 6-bit Non-uniformity Correction

Operating Temperature Range: -40°C to +85°C

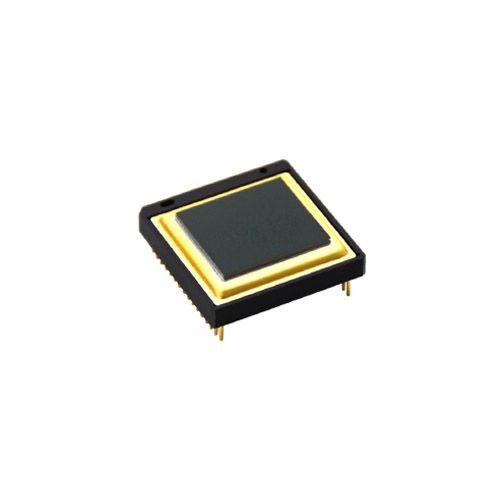

Package Form: 32-pin Ceramic Vacuum Package

Package Size: 22 × 22 × 4.58 mm³ (excluding pin size)

Package Weight: ≤ 5g
