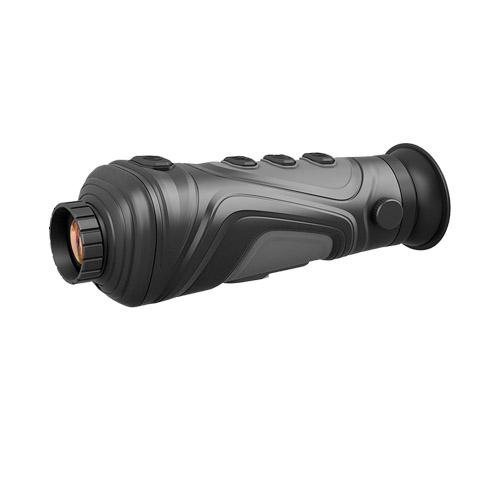

The FCMA3NVD Outdoor Thermal Imager is a portable "nighttime essential" with excellent nighttime detection capabilities. Equipped with a 12μm high-performance sensor, it offers two infrared resolution options (256x192/384x288) and three adjustable frame rates (25Hz/50Hz/60Hz) for clear nighttime image capture. It features flexible viewing: with three professional lenses (15mm/25mm/35mm), 1x/2x/4x electronic zoom, and a 14.9°x11.2° field of view, it adapts to different scenarios. Additionally, it supports WiFi hotspot connectivity for linking to smartphones/laptops, has 16GB of storage for free shooting, provides over 10 hours of battery life, and weighs approximately 400g—ideal for traveling light outdoors.

Model: FCMA3NVD/FCMA73NVD

Infrared resolution: 384×288/256×192 LCD

LCD resolution: 720×540/720×540

Detector type: Uncooled infrared focal plane

Frame rate: 50/60Hz/25Hz

Noise Equivalent Temperature Difference (NETD): ≤ 40mk @ 25℃, @ F/1.0/ ≤ 50mk @ 25°C, @ F/1.0

Pixel pitch: 17μm/12μm

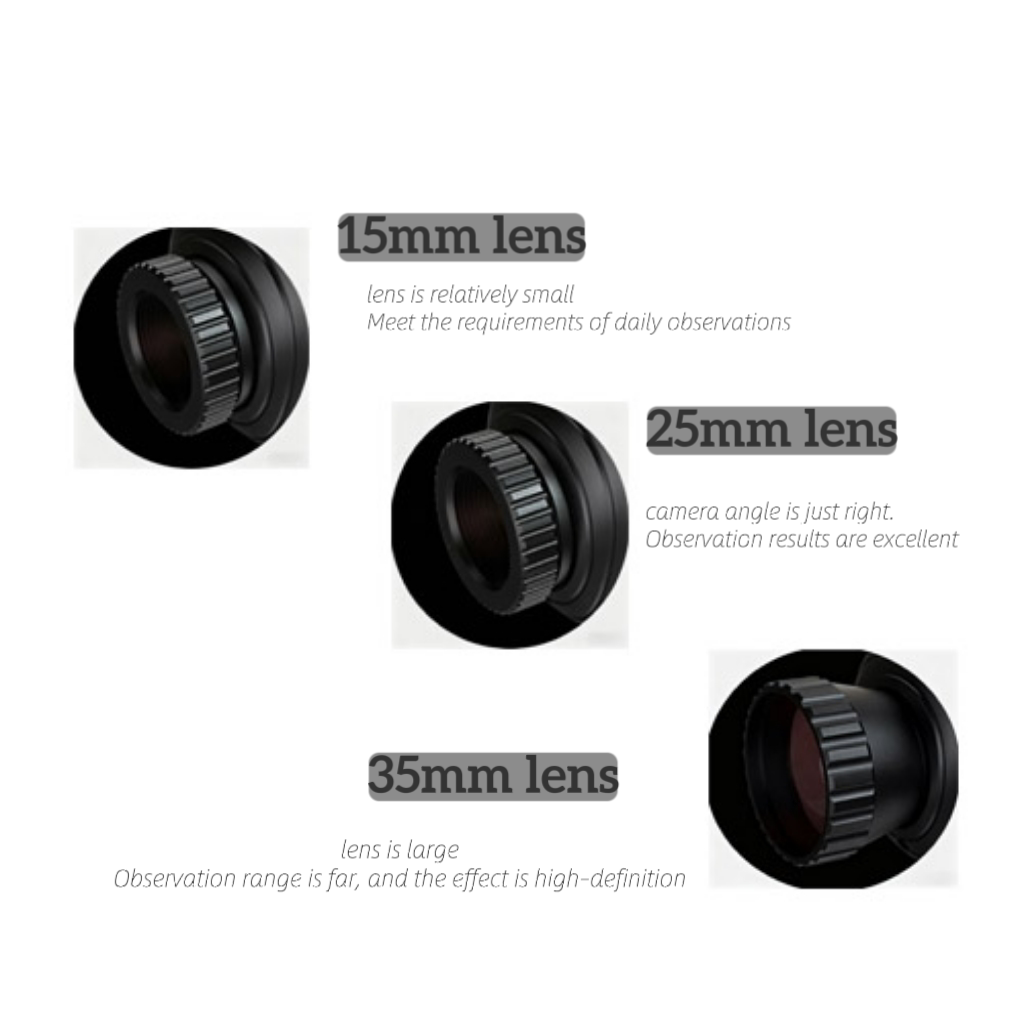

Focal length: 25mm, 35mm / 15mm

Field of view: 14.9°×11.2°, 10.7°×8° / 11.7°×8.78°

Eyepiece: Monocular display (adjustable astigmatism correction)

Wavelength range: 8~14μm

Languages: Chinese, English

Electronic zoom: ×1/×2/×4

Focusing method: Manual focusing

Image format: BMP

WIFI: Supported (A3)

Color palette: White heat, black heat, rainbow, hot metal, yellow saturation, birdwatching mode

Battery type: 18650 rechargeable lithium battery (3500mAh)

USB interface: Type-C, for exporting images and battery charging, CVBS output

Operating temperature: -10℃~+50℃

Storage temperature: -30℃~+70℃

Working time: ≥10h / ≥5h

Product size: 186×68×68mm / 186×69×68mm

Weight: 440g/420g
