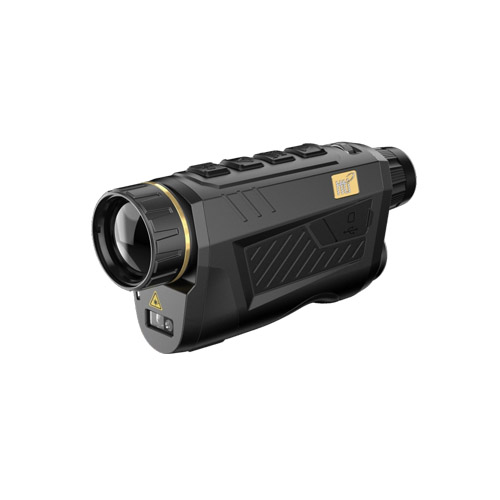

FCM3635NVD Monocular Wide-Angle Lens Night Vision Device

Application scenario: Outdoor observation, night patrols, and personal safety protection, etc.
Description Package Information Inquiry

The FCM3635NVD Monocular Wide-Angle Lens Night Vision Device helps you see the world clearly in the dark. Equipped with 640x512 infrared resolution, a 50Hz frame rate, and a 12um high-performance sensor, it delivers smooth images, allowing you to accurately capture surrounding details even in dark environments. It comes with a 35mm professional wide-angle lens, supports 1x-8x electronic zoom, and is also featured with hotspot tracking and electronic compass functions, easily meeting the needs of various scenarios. It boasts strong performance while being portable and easy to carry: 2.4/5G WiFi enables fast data transmission; 32GB large-capacity storage plus a TF card slot allows you to freely record wonderful moments during your trips; the body is lightweight, weighing less than 300g, so you can carry it without burden. It is widely used in scenarios such as outdoor observation, night patrol, and personal security.


Detector type: Vanadium oxide non-cooled infrared focal plane

Infrared resolution: 640x512

Pixel pitch: 12 μm

Noise Equivalent Temperature Difference (NETD) :≤ 25mk at 25℃, F/1.0

Frame rate: 50Hz

Long range: 8 - 14 μm

Focusing method: Manual focusing

Focal length: 35mm

Electronic zoom: 1x/2x/4x/8x

Prism power: -6D to 4D

Laser ranging: 10 - 1200m

Ranging accuracy: < 400m ± 1m; > 400m, ± 0.4%

WIFI: 2.4G/5G

Display: 0.37-inch OLED screen

Scene modes: Standard/Forest/Urban custom (Details/Noise Reduction)

Color palette: White heat/Black heat/Celestial rainbow/Red iron/Hot red/Colored

Hotspot tracking: Supported

Storage space: 32GB + TF card slot

Languages: English, Chinese

Photo and video recording: Supported, JPG/MP4

Battery: 18650 detachable rechargeable lithium battery

Battery life: ≥ 6 hours

Operating temperature: -20 to 55℃

Storage temperature: -30 to 70℃

Protection level: IP66

Product weight: < 300g
