The FCM201NVD/FCM202NVD/FCM203NVD series of monocular outdoor night vision devices tackle complex outdoor observation needs with robust performance. Equipped with high-resolution infrared sensors in multiple specifications (256x192/384x288/640x512) and a 50Hz high frame rate, they ensure clear display of target details even in darkness, underbrush, or fog, with smooth and non-blurry dynamic images. They come with 25mm/35mm professional lenses, supporting 1x-8x electronic zoom and ±4D diopter adjustment to flexibly adapt to different observation distances. Additionally, they feature hotspot tracking, picture-in-picture (PIP) functions, and 6 pseudo-color modes for accurate target capture, making them widely applicable in scenarios like outdoor exploration, hunting, search and rescue, and fire safety.

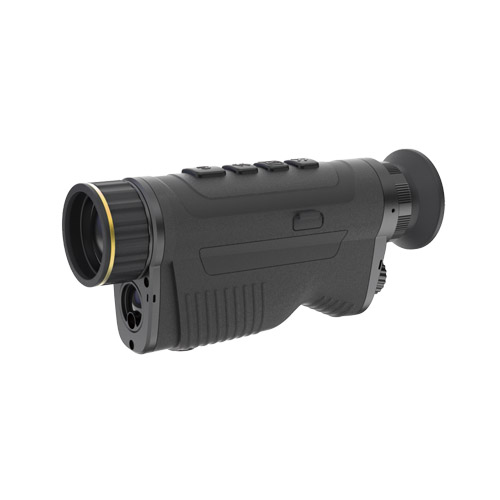

Model: FCM201NVD/FCM202NVD/FCM203NVD Monocular Outdoor Night Vision Device

Detector type: Vanadium Oxide Vox

Infrared resolution: 256×192/384×288/640×512

Noise Equivalent Temperature Difference (NETD): ≤ 50mK @ 25℃, F#1.0/≤ 30mK @ 25℃, F#1.0/≤ 25mK @ 25℃, F#1.0

Focal length: 25mm/35mm/35mm

Field of view: 7.0°×5.4°/7.5°×5.7°/12.5°×10.0°

Spatial resolution: 0.48mrad/0.34mrad/0.34mrad

Pixel size: 12μm

Working wavelength range: 8~14μm

Frame rate: 50Hz

Focusing method: Manual focusing

Display screen: 0.39-inch 0LED

Display screen resolution: 1024×768

Electronic zoom: 1x/2x/4x 1x/2x/4x/8x

Prism power: -6D~+4D

Hot spot tracking/Window-in-window: Supported

Pseudo-color mode: White heat, Black heat, Hot, Rainbow, Iron red, Cool color

Language: English

Image/video format: JPG/MP⁴

USB interface: TYPE-C

Battery: 3200mAh (Model 18650) rechargeable lithium battery

Protection level: IP65

Battery life: ≥ 7h/≥ 6h/≥ 4h

Size: 188mm×81mm×52mm

Weight: 490g/510g/530g

Distance measurement range (buildings): 10m~1200m

Distance measurement accuracy (buildings): < 400m ± 1m, > 400m ± 0.4%
