Outdoor Infrared Thermal Imager: Hardcore Black Technology, the New Champion of Night Exploration

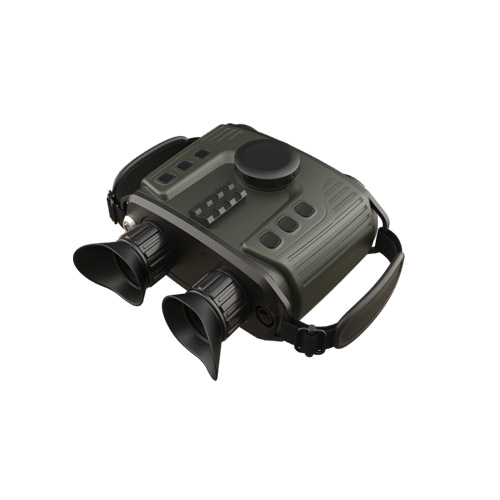

The high-end devices –  FCC690NVD Night-vision Devices – are your "night vision eyes". With 384x288/640x512 infrared resolution and a 1024x768 OLED display for ultra-clear images, plus a 50Hz frame rate for smooth dynamic capture; the 2500m ranging and 6250m detection distance help you take the initiative.

It has 4 modes (including infrared) and multiple false colors to adapt to various environments. Supporting WiFi image transmission, it comes with 16GB memory, 6-hour battery life, and IP66 protection to withstand wind and rain. Suitable for outdoor adventures, marine operations, etc., it accompanies you to enjoy the outdoors safely.

Model: FCC600NVD/ FCC640NVD/FCC680NVD/FCC690NVD

Detector type: VOx

Infrared resolution: 384×288 / 640×512

Pixel size: 12μm

Field of view angle: 5.3°×4° / 8.8°×7.0° / 5.3°×4° / 8.8°×7.0°

Range measurement:   -  /  -  /  10m~2500m / 10m~2500m

Working wavelength band: 8μm~14μm

Focal length: 50mm

Noise Equivalent Temperature Difference (NETD): ≤40mK @25℃, F/1.0

Frame rate: 50Hz

Focusing method: Electric focusing

Display screen: 0.39-inch OLED

Display resolution: 1024×768

Display mode: Infrared/Micro-light/Binary light fusion/ Picture-in-picture

Electronic zoom: 1×/2×/4×

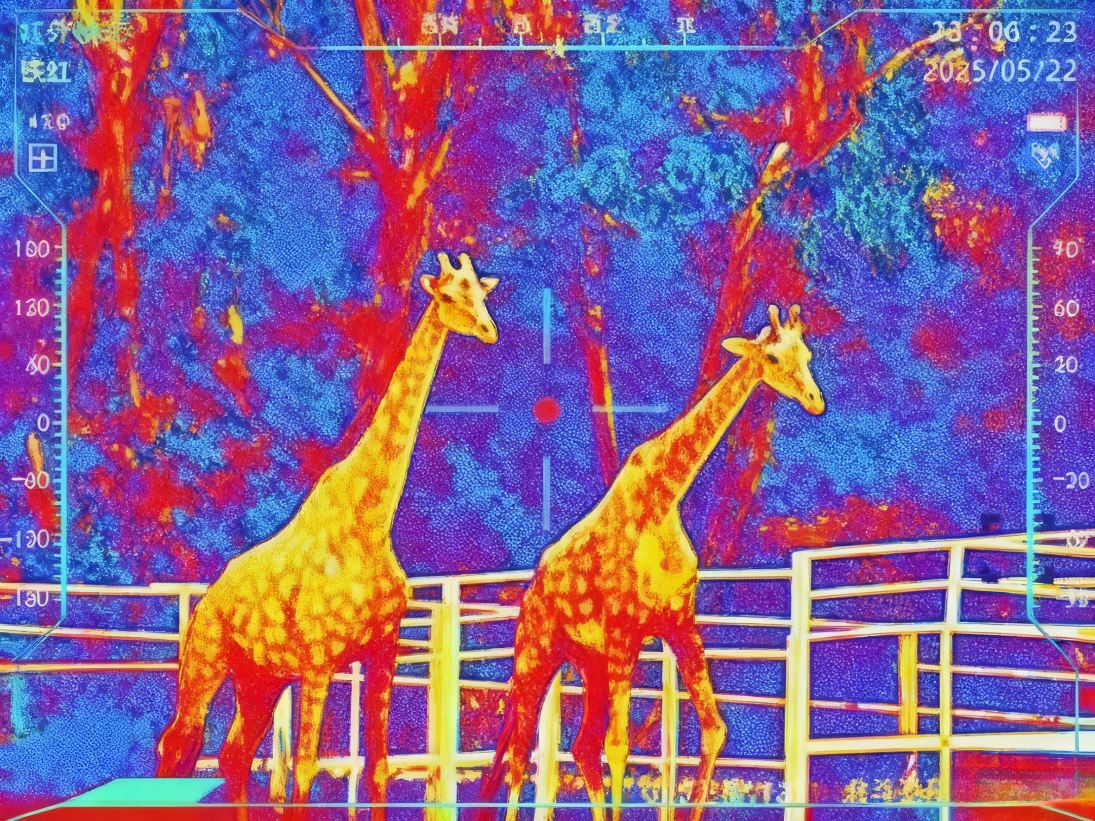

Pseudo-color mode: Rainbow, Iron red, Cool color, White heat, Black heat

WIFI: 2.4G image transmission

Battery: 18650 rechargeable lithium battery (3200mAh*2) / 18650 rechargeable lithium battery (3200mAh*2)

Battery life: ≥6h / ≥4h

Operating temperature: -20℃~+50℃ / -20℃~+50℃

Storage temperature: -30℃~+70℃ / -30℃~+70℃

Size: 193.1×176.8×99mm / 192.8×86.9×189.6mm

Weight: 1.65kg
