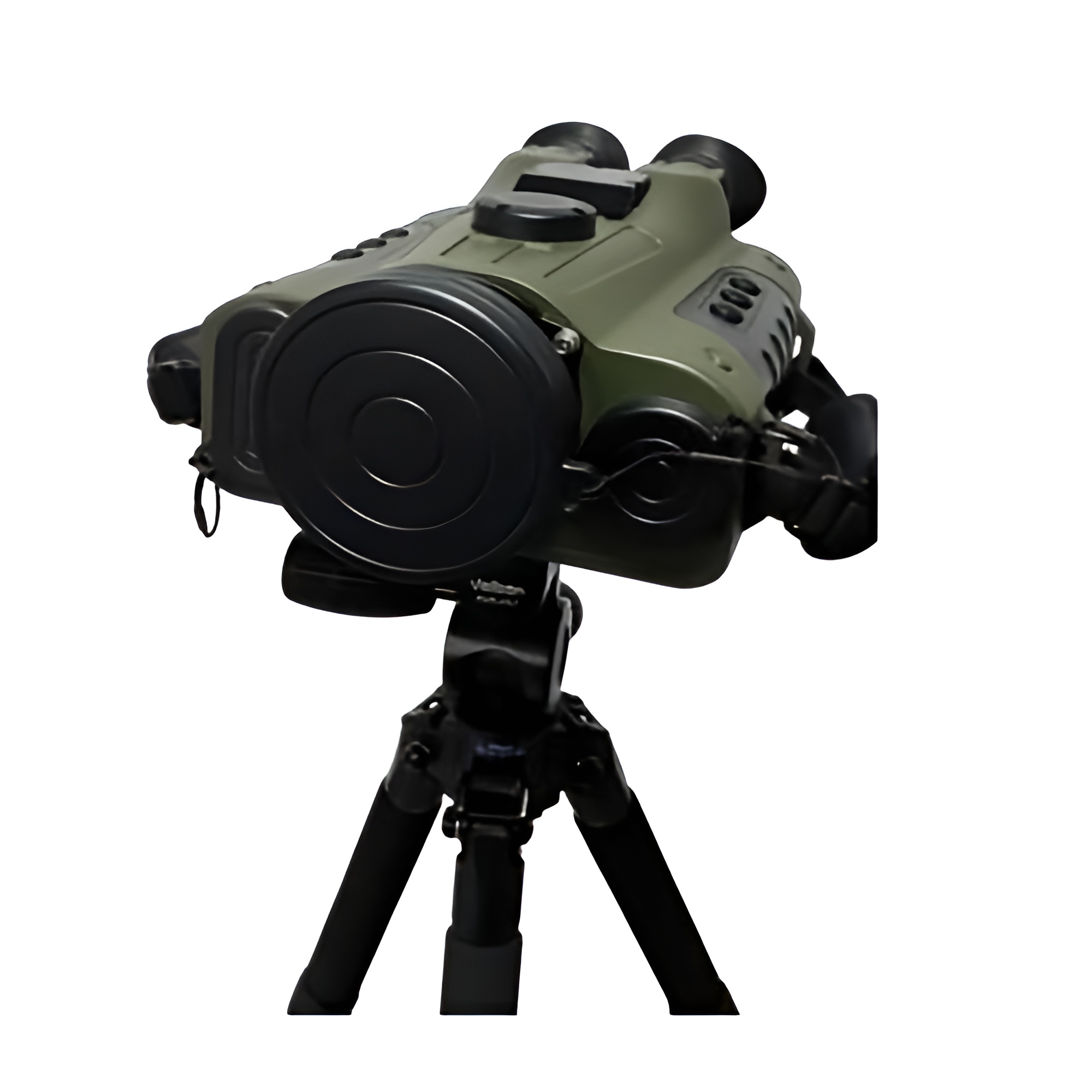

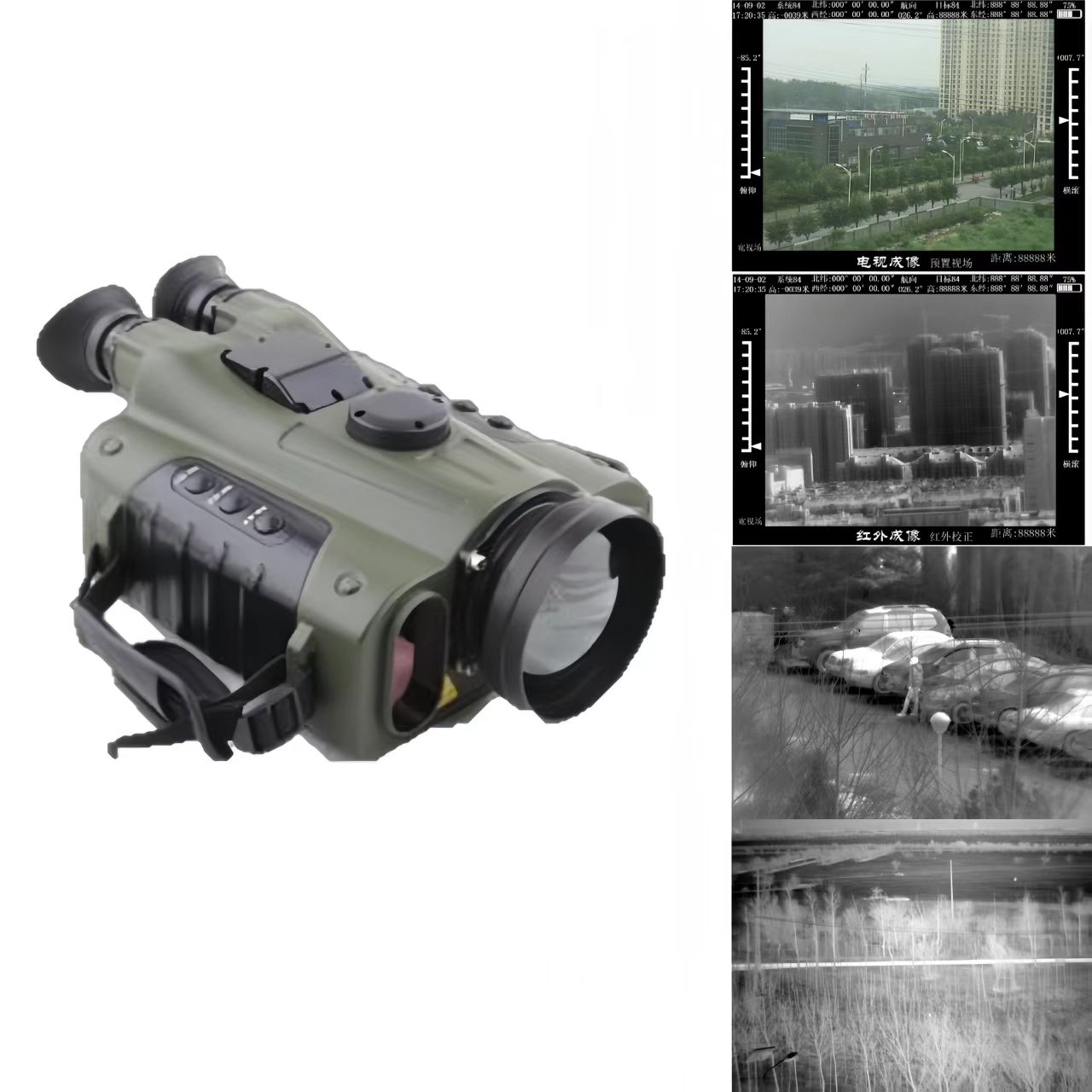

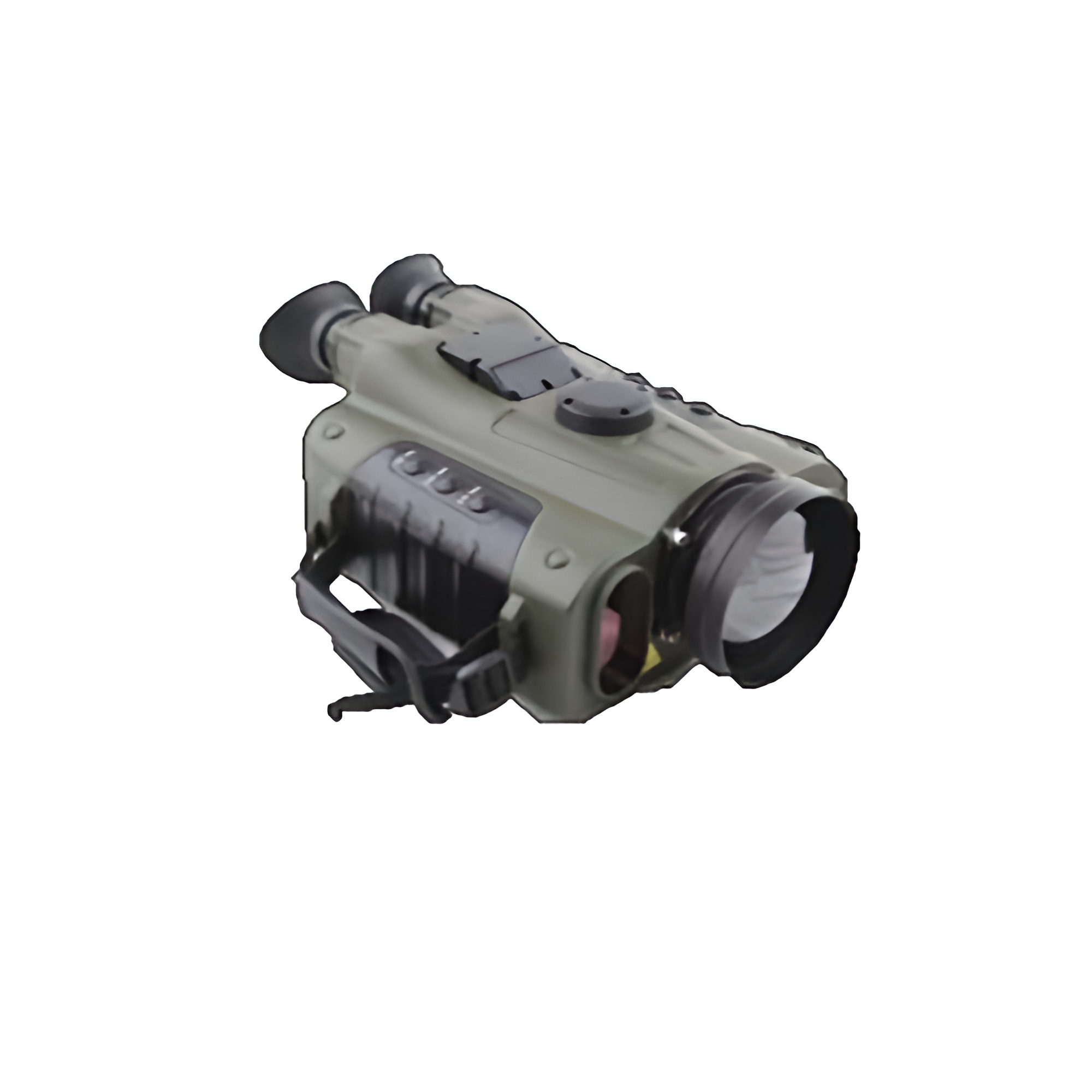

The refrigerated handheld thermal imager is a small-sized, lightweight and portable multi-functional product. It integrates various functions such as infrared imaging, visible light imaging, laser ranging, positioning and orientation, as well as storage and playback, providing observers with abundant information.

Application scenarios:

24-hour security surveillance,

Search and rescue in adverse weather conditions,

Professional investigation

Identification Distance: ≥ 2.5km for upright personnel  ≥ 5km for medium-sized tanks

Refrigeration Time: ≤ 10 minutes

Volume: ≤ (335X240X135) mm³

Weight: ≤ 3.6kg (including battery)

Continuous Working Time: ≥ 4 hours (at normal temperature)

Operating Temperature: -40℃ to +55℃

Storage Temperature: -50℃ to +70℃

Infrared Detector: Refrigerated Mid-wave 640X512 Detector

Infrared Pixel Spacing: 15um×15um

Infrared Field of View: Large Field of View 11°X8.8° Small Field of View 3.6°X2.9°

Visible Light Field of View: 4°X3° (10x optical zoom)

Laser Ranging: 100m to 5000m (accuracy 2m)

Self-Positioning: 10m

Information Processing: Image, Video Storage and Transmission
