Integrated with infrared and 4K white light dual-band imaging, equipped with a 905nm laser distance meter (range 10 - 3500m, accuracy ±2m) and the Beidou positioning system

Supports AI vehicle and person recognition, enabling rapid screening of key targets Lightweight design (≤ 1.2kg) and customizable appearance support are provided.

The main functions of the product are as follows:

1 It has infrared and white light imaging capabilities;

2 It has binocular observation function;

3 It has laser ranging function;

4 It has Beidou positioning function;

5 It has compass orientation function;

6 It has target positioning function;

7 It has image and video storage function;

8 It has trajectory calculation function;

9 It has reserved expansion interface, which can be externally connected with temperature and humidity sensors, anemometers, etc.;

10 It has AI recognition function for human and vehicle targets;

11 It has electronic fog removal function;

12 It has electronic zoom ranging from 1.0× to 8.0× with step of 0.1×;

13 It has roll angle, pitch angle, altitude, and air pressure sensors;

14 It has fault diagnosis function;

1 Infrared thermal imager

Detector: 640×512, 12um vanadium oxide non-cooled focal plane array;

Lens: 35mm, F1.

2 White light camera

Detector: 3840×2160, 1.5μm color CMOS;

Lens: 35mm, F1.8.

3 Laser rangefinder

Wavelength: 905nm;Measurement range: 10 - 3500m;Ranging accuracy: ±2m.

4 Monitor: 0.39-inch OLED, resolution ≥ 1024×768;

Eyepiece magnification: 15×;Eyepiece diopter: -4D to 4D.

5 Storage: Built-in TF card, storage of images ≥ 20,000, video ≥ 4 hours.

6 External interfaces:Video output: HDMI;Image and video export: USB.

7 Working time: Not less than 4 hours (at normal temperature).

8 weight: Weight not exceeding 1.2kg.

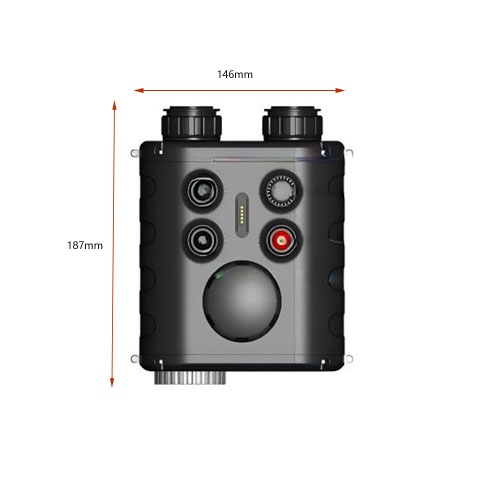

9 Size: 146x187mm
