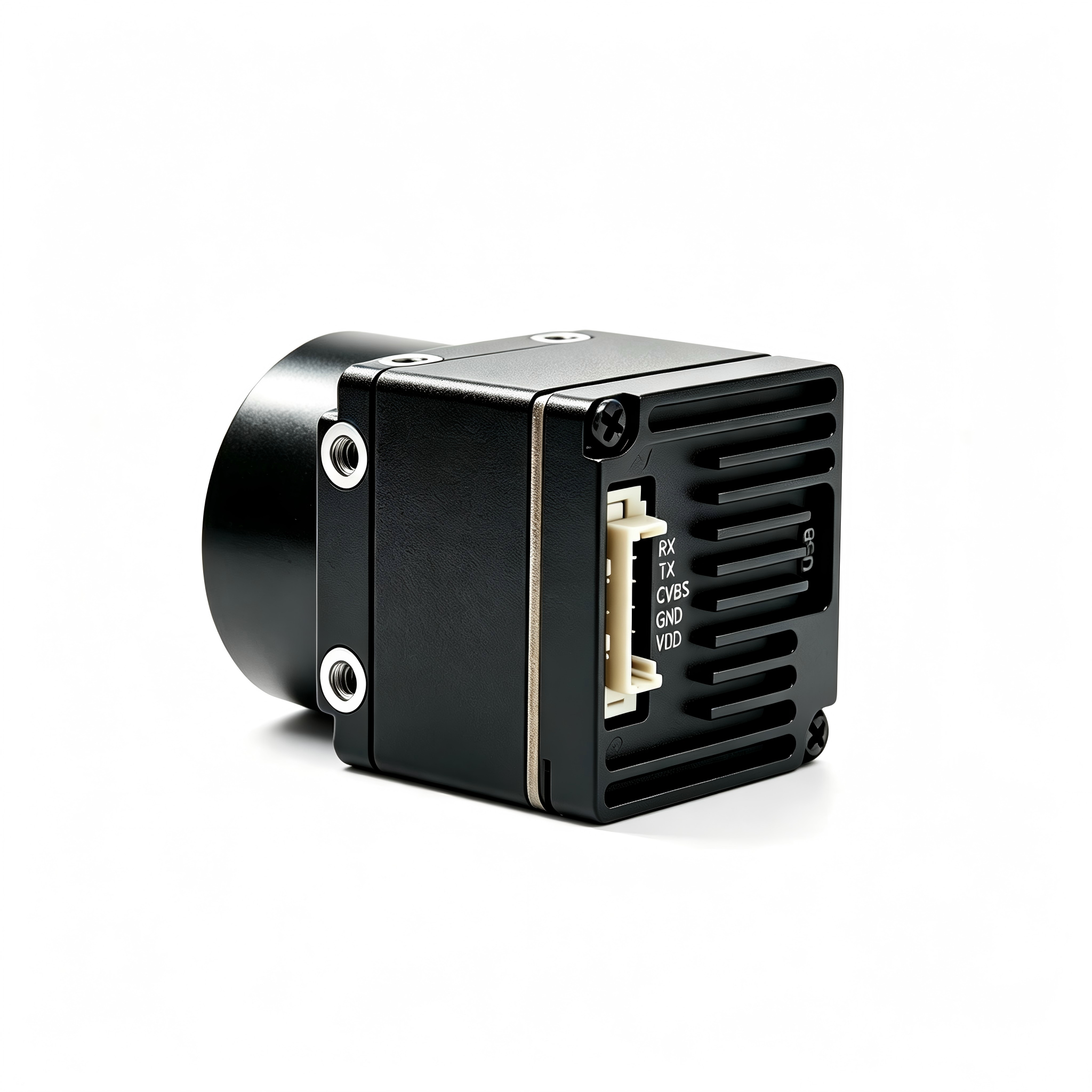

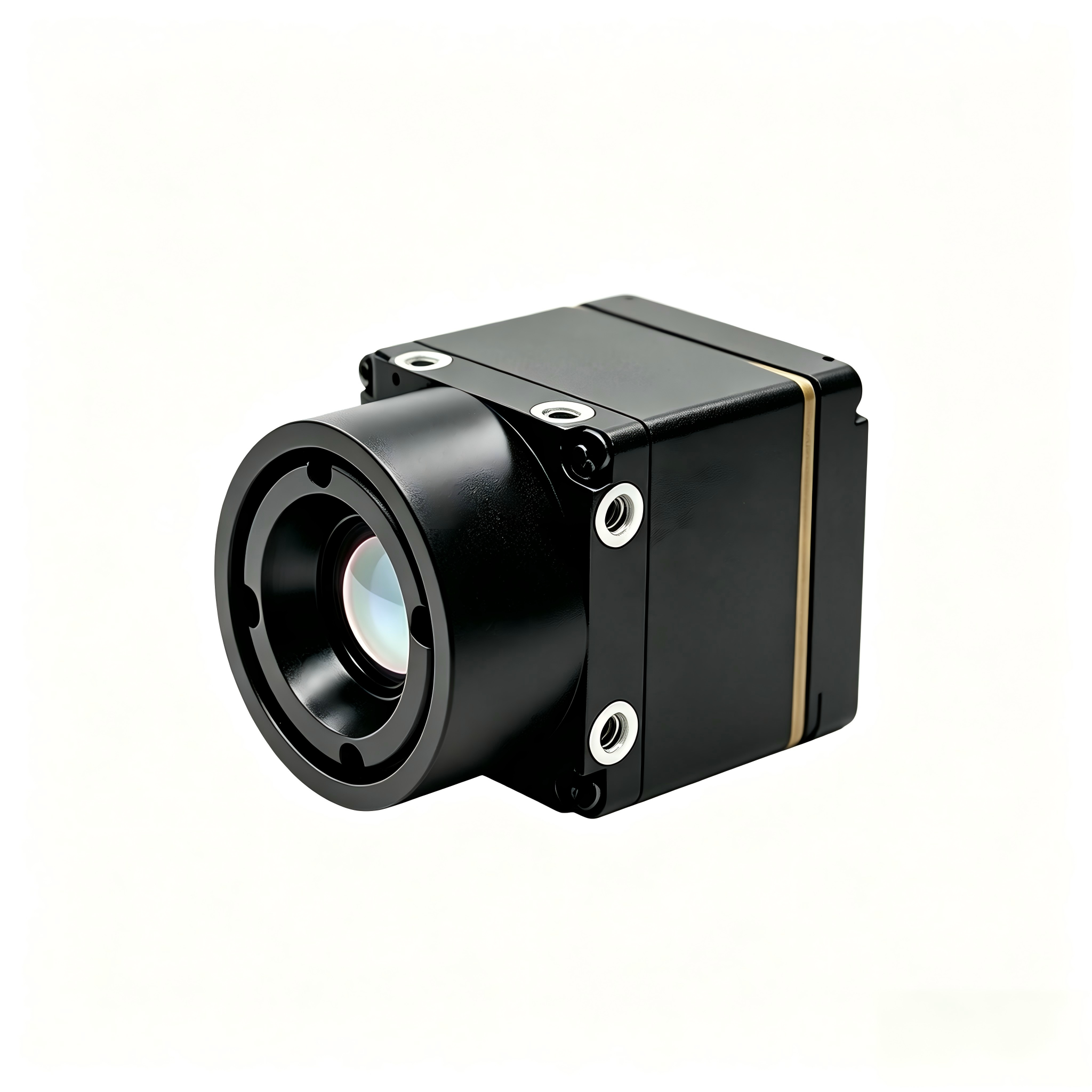

FABY640CA  Infrared thermal imaging cameras equipped with a high-resolution 640×512 detector adopting advanced 12μm pixel technology, paired with interchangeable focal length lenses, deliver sharp and consistent thermal imagery for a wide range of applications including industrial inspection, security surveillance, outdoor search and rescue, etc. They serve as the premium all-scenario thermal imaging solution for professional use.

High stability clear thermal image camera，Small size low power infrared thermal camera，Industrial grade thermal inspection camera，Search rescue high res thermal imager,ThermalImagingCamera ，InfraredDetector ，Industrial ThermalCamera ，PortableThermalImager ，LowPowerThermalModule ，640x512ThermalCamera ，SearchAndRescueEquipment ，SecurityThermalCamera

Model: FABY640CA

Sensor: Vanadium oxide non-cooled infrared focal plane detector

Resolution: 640*512

Working wavelength range: 8~14um

NETD: ≤30mk

Frame rate: 50Hz

Lens type: Sulfide lens

Focal length: 4.9mm/9.1mm/13mm/19mm/35mm

Field of view: 76.2°x 64.2° / 45.8° x 37.3° / 33.0°x26.6° / 22.9°x18.4° / 12.5°x10.0°

Aperture: F1.0

Instantaneous field of view: 2.45mrad/1.31mrad/0.92mrad/0.63mrad/0.34mrad

Delay: <20ms

Power consumption: <0.7W

Interfaces: CVBS, UVC, mipi

NUC: Automatic correction

Standard: PAL

Wide voltage input: 5-24V

Operating temperature: -20°C~60°C

Weight: 23.1g
