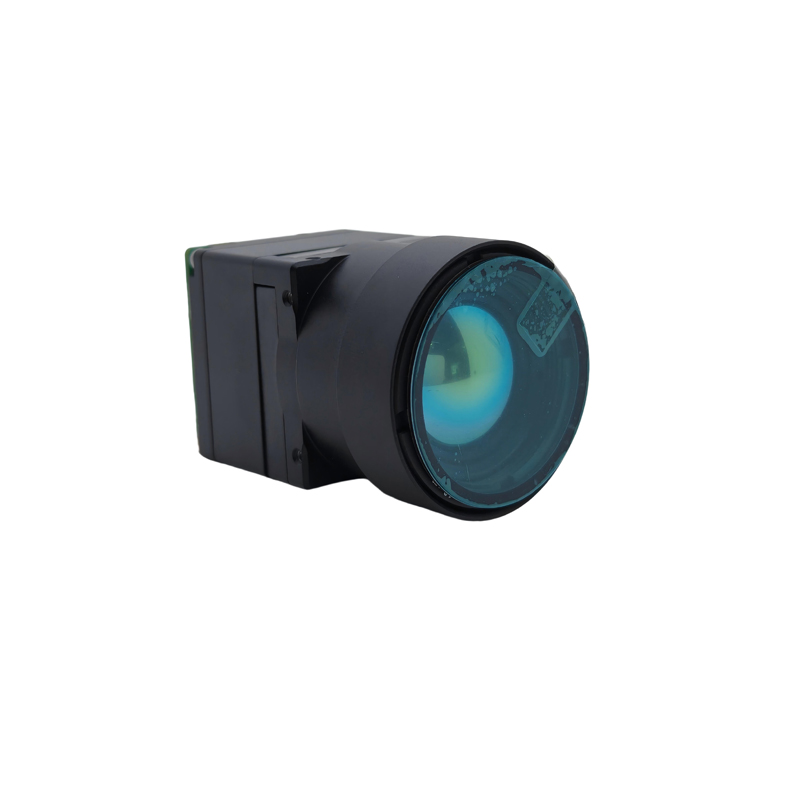

The AT640 uncooled infrared core module is purpose-built for size- and power-sensitive applications. It features a compact form factor, light weight and low power consumption, supports multiple serial communication and video output interfaces, and is available with a wide selection of lightweight infrared lenses .

The observation series products provide comprehensive infrared imaging solutions for various optoelectronic devices, including compact handheld equipment, helmet-mounted night vision devices, lightweight civilian UAV systems, and multi-spectral fusion systems.

The temperature measurement product line is widely applicable to fields such as industrial temperature inspection, power equipment thermal monitoring, security temperature detection, and machine vision.

infrared imaging solutions, uncooled infrared core, thermal imaging module, observation thermal camera, temperature measurement thermal camera, multi-spectral fusion optoelectronics,VOxlnfraredFPA ,CeramicPackage ,UncooledInfraredDetector ,640x512IRCore ,Thermallmaging

Model:FAT640

Detector Type: Vanadium Oxide (VOx) Uncooled Infrared Focal Plane Array (FPA) Detector

Resolution: 640 × 512

Pixel Pitch: 12μm

Frame Rate: 50Hz (1)

Response band: 8～14μm

 NETD: ≤50mK @ 25℃, F#1.0 (≤40mK optional)

TEC (Thermoelectric Cooler): None

Brightness & Contrast Adjustment: Manual mode / Auto mode / Linear mode

Display Polarity: Black Hot / White Hot

Pseudo-color: Supported (2)

Video Output:

• 1-channel analog video, PAL standard (4)

• Digital video BT.656 / BT.1120

Weight (without lens, without expansion module): 20g ± 3g

Size (without lens): 26 × 26mm
