FASST64020-M12-9

- High Sensitivity: Vanadium Oxide (VOx) uncooled detector with exceptional sensitivity

- High Resolution: 640 × 512 pixel resolution for clear thermal imaging

- Analog Output: Supports standard analog signal output

- Multi-Correction Modes: Auto, manual, and background non-uniformity correction (NUC)

- Safety Protection: Built-in anti-burnout function for detector protection

- Compact Design: Small form factor, ideal for seamless system integration

VOx Uncooled Detector, 640×512 Thermal Sensor, Analog Output IR Detector, High Sensitivity Infrared Detector, Anti-burnout Thermal Detector, Compact IR Module,infrared thermography,infrared camera

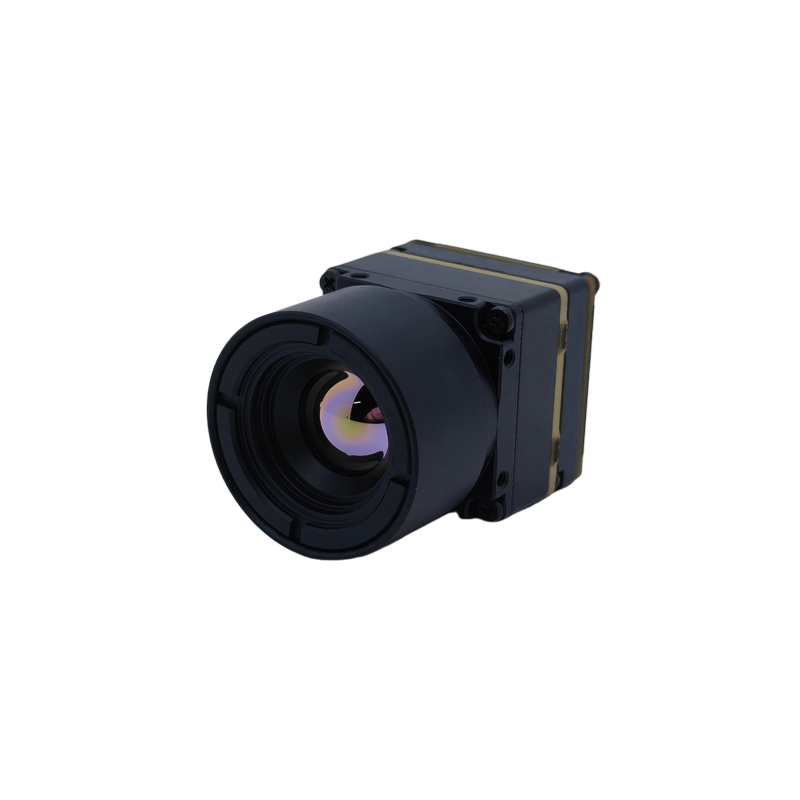

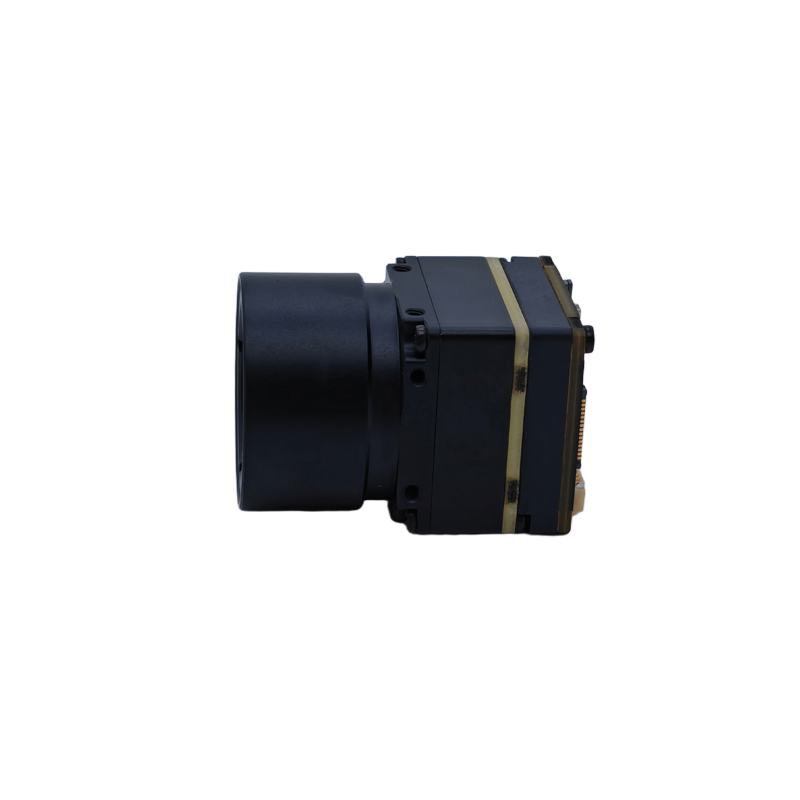

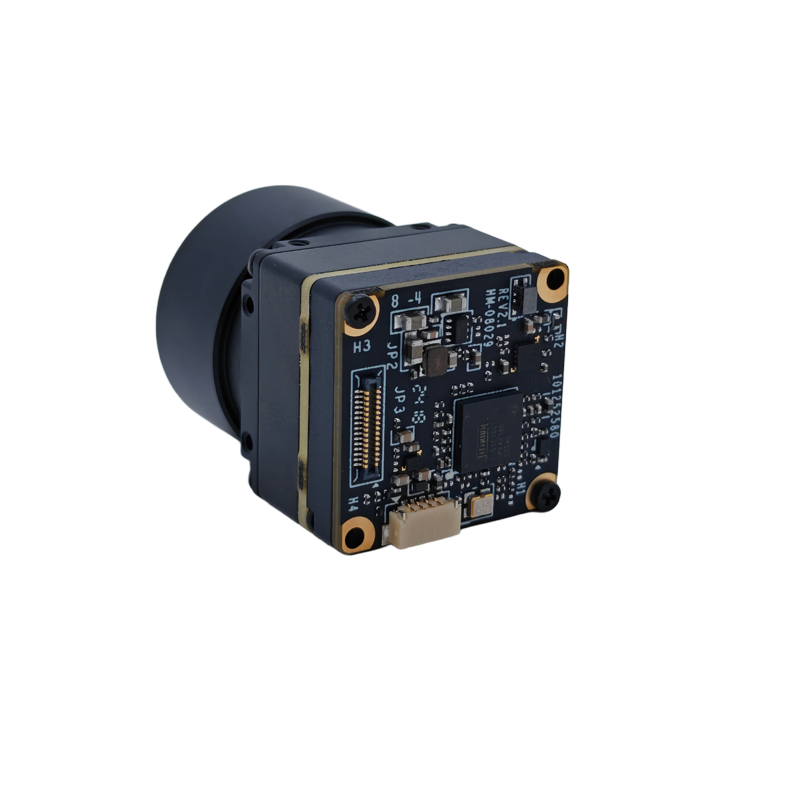

Model/Name: FASST64020-M12-9 Infrared Thermal Imaging Module

Resolution: 640 × 512

Pixel Pitch:12 μm

Response Waveband: 8–14 μm

NETD:≤ 40 mK (@25 °C, F#1.0)

MRAD:1.2

Lens Focal Length: 9.1 mm

Field of View: 48.3° (H) × 38.6° (V), 62.4° (D)

Maximum Aperture: F1.0

Frame Rate: 25 Hz

Pseudo-color Modes:

Supports 15 modes including White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, etc.

Interface: CVBS

Storage Temperature: -45 °C ~ +75 °C

Operating Temperature: -40 °C ~ +80 °C

Storage Humidity: ＜ 90% RH

Vibration: Sinusoidal vibration, 10 m/s², 3 axes

Shock: Half-sine wave, 15 g/11 ms, 3 axes, 6 directions

Power Consumption: ≤ 0.8 W

Power Input: DC 6 V–17 V

Dimensions: 37.82 mm × 20 mm × 20 mm

Weight: ≤ 23 g
