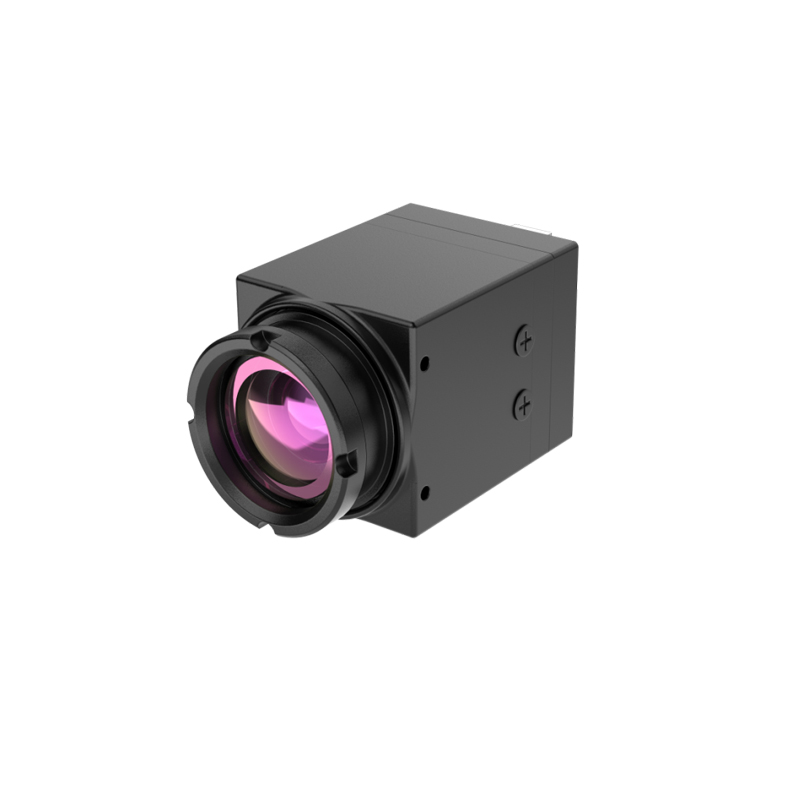

The FASST64019-M12-9 is an ultra-compact and lightweight infrared thermal imaging module, specifically designed for space-constrained applications with stringent integration requirements. Combining miniaturization, high adaptability and multi-scenario visualization, it fulfills thermal imaging demands in diverse fields such as industrial inspection, security night vision, drone-mounted systems and portable devices.

FASST64019-M12-9, infrared thermal imaging module, CVBS analog output, 6 pseudo-colors, miniature size, lightweight, night vision thermal module, thermal detection

Model: FASST64019-M12-9

Detector Type: VOx

Resolution: 640 × 512

Pixel Pitch: 12 μm

Spectral Band: 8 ~ 14 μm

NETD: ≤ 40 mK

Frame Rate: 50 Hz

F-Number: F1.0

Focal Length: 9.1 mm

Field of View (FOV): 45.76° × 37.31°

Pseudo-color Modes: White Hot, Black Hot, Rainbow, Iron Red, Cold Color, Hot Color

Digital Video Output: USB

Analog Video Output: CVBS

Analog Video Resolution: PAL 720 × 576

Crosshair: Supported

Voltage Range: 5V (5V ~ 24V)

Power Consumption: 0.7W

Operating Temperature: -20°C ~ +50°C

Storage Temperature: -30°C ~ +70°C

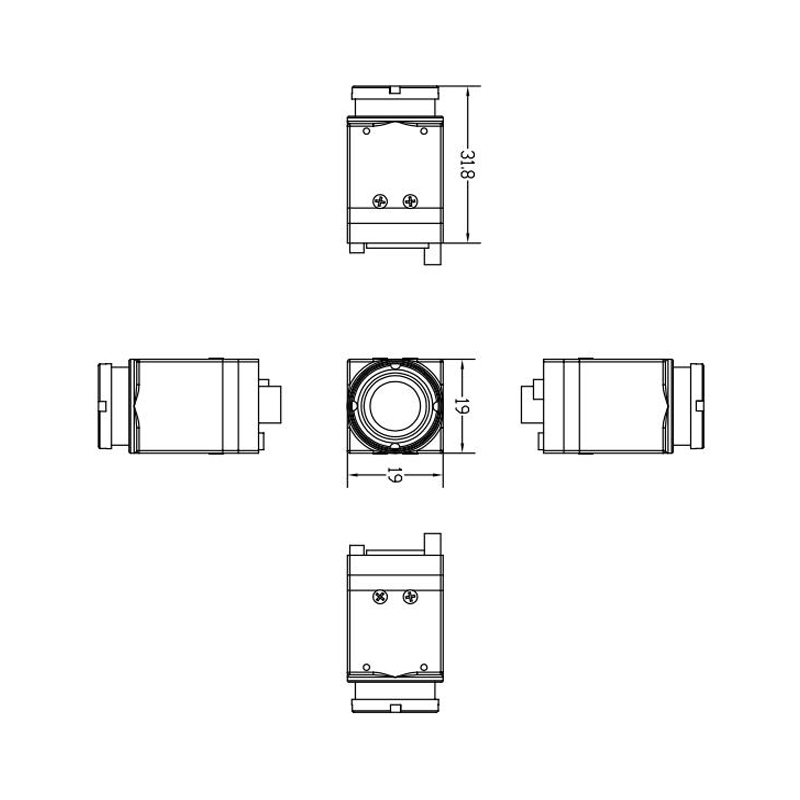

Dimensions: 19mm × 19mm × 31.8mm

Weight: 22g
