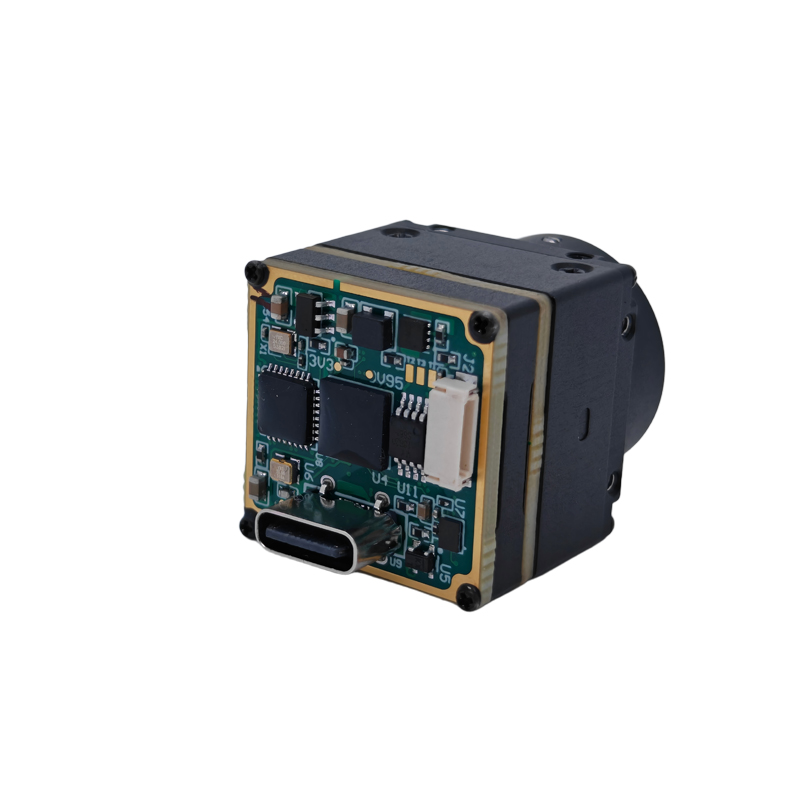

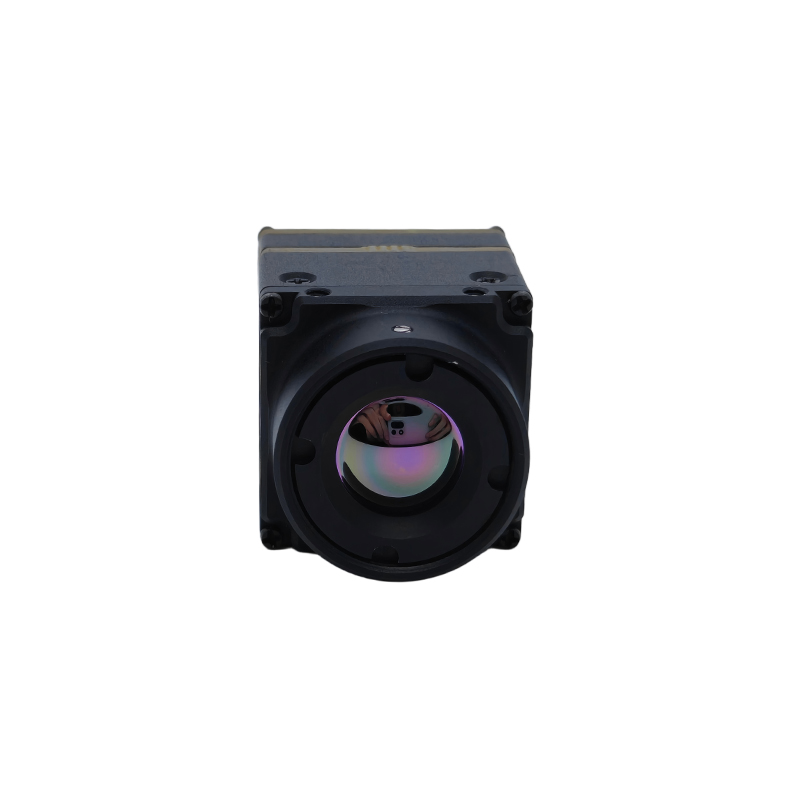

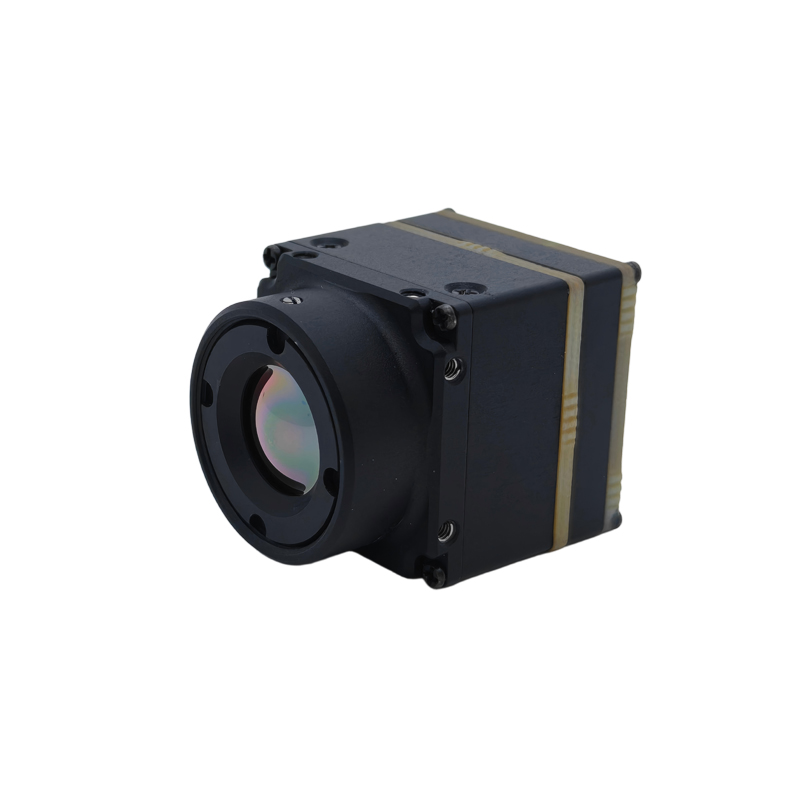

The FASST64021-M12 uncooled long-wave infrared imaging core module adopts a compact and low-cost design. It supports multiple video output formats, features high sensitivity and high reliability, and can meet the application requirements of small UAVs, smart sights, security surveillance, industrial detection and other fields.

infrared thermal imaging module,infrared imaging,IR camera，Application scenario keywords: small UAVs, smart sights, security surveillance, industrial detection

Model: FASST64021-M12-9

- Resolution: 640×512

- Pixel Pitch: 12 μm

- Spectral Band: 8–14 μm

- Noise Equivalent Temperature Difference (NETD): ≤50 mK @F1.0@25℃

- Startup Time: ≤7.5 s

- Image Processing: Non-uniformity correction, bad pixel replacement, noise reduction, filtering, wide dynamic range compression, image enhancement, polarity reversal, pseudo-color

- Brightness/Contrast: Auto / Manual

- Digital Zoom: 1× – 4×

- Communication: UART / USB

- Video Format:

Frame rate 25/50 Hz, 8 bit

USB 2.0, MIPI, BT.656, Camera Link digital video

CVBS analog video

- Steady-state Power Consumption: ≤0.5 W (5 V, 23±3℃, 25 Hz, USB2.0 output)

- Supply Voltage Range: DC 4.5–5.5 V

- Typical Supply Voltage: DC 5.0 V

- Operating Temperature: -40℃ ~ 60℃

- Storage Temperature: -45℃ ~ 70℃

- Dimensions: 21 mm × 21 mm × 17.8 mm (excluding Type-C connector)

- Weight: 18 g (without lens); 24 g (with 9.1 mm lens)
