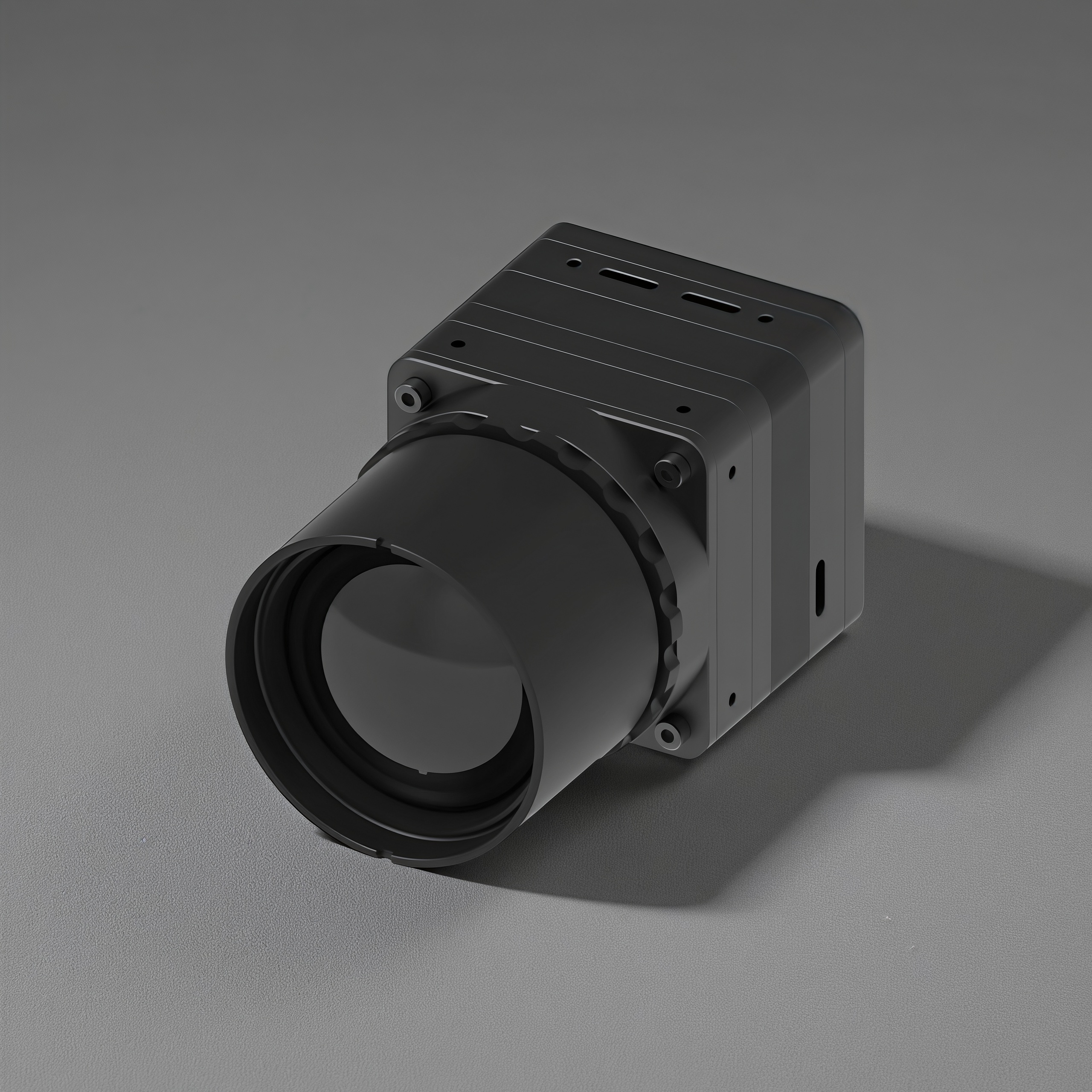

FASST1280UT uncooled infrared thermal imaging module is developed  based on a 1280*1024 high-resolution infrared detector. It adopts the latest  infrared thermal image processing algorithm, delivering delicate and clear  image quality. Equipped with a uniquely-developed image processing circuit,  it can provide a variety of digital interfaces according to user needs, enabling  more flexible integration into various intelligent processing platforms.

Model:FASST1280UT

Detector:VOX

Resolution:1280×1024@12μm

Spectral range: 8μm～14μm

NETD: ≤40mK@F1.0 25℃

Frame rate: 30/50Hz

Typical thermal time constant:≤15ms

Lens: 9/35/50/55/75/100/125/150mm

NUC: Shutter

Image Setting: Brightness/contrast/DDE

Digital zoom: 1X、2X、3X、4X

Image mirroring: Up/Down/Left/Right/Diagonal

Polarity: White hot/ Black hot

Analog video: AHD

Digital video: BT1120/ USB3.0/Cameralink/Ethernet/LVDS/MIPI/SDI/HDMI

Power input:AHD/ Cameralink/LVDS/SDI:DC6-24V;

                            Ethernet:DC12V;

                            BT1120/USB3.0/ MIPI /HDMI:DC5V

Power consumption: ≤4W(stable @25℃)

Communication: TTL/ R232/RS422/

Humidity: 5%RH～95%RH，non-condensing

Working temperature:-40℃～+60℃

Storage temperature:-50℃～+70℃

Vibration: 6.06g random vibration, all axes

Shock: 80g@4ms,final peak sawtooth wave,3 axes 6 directions

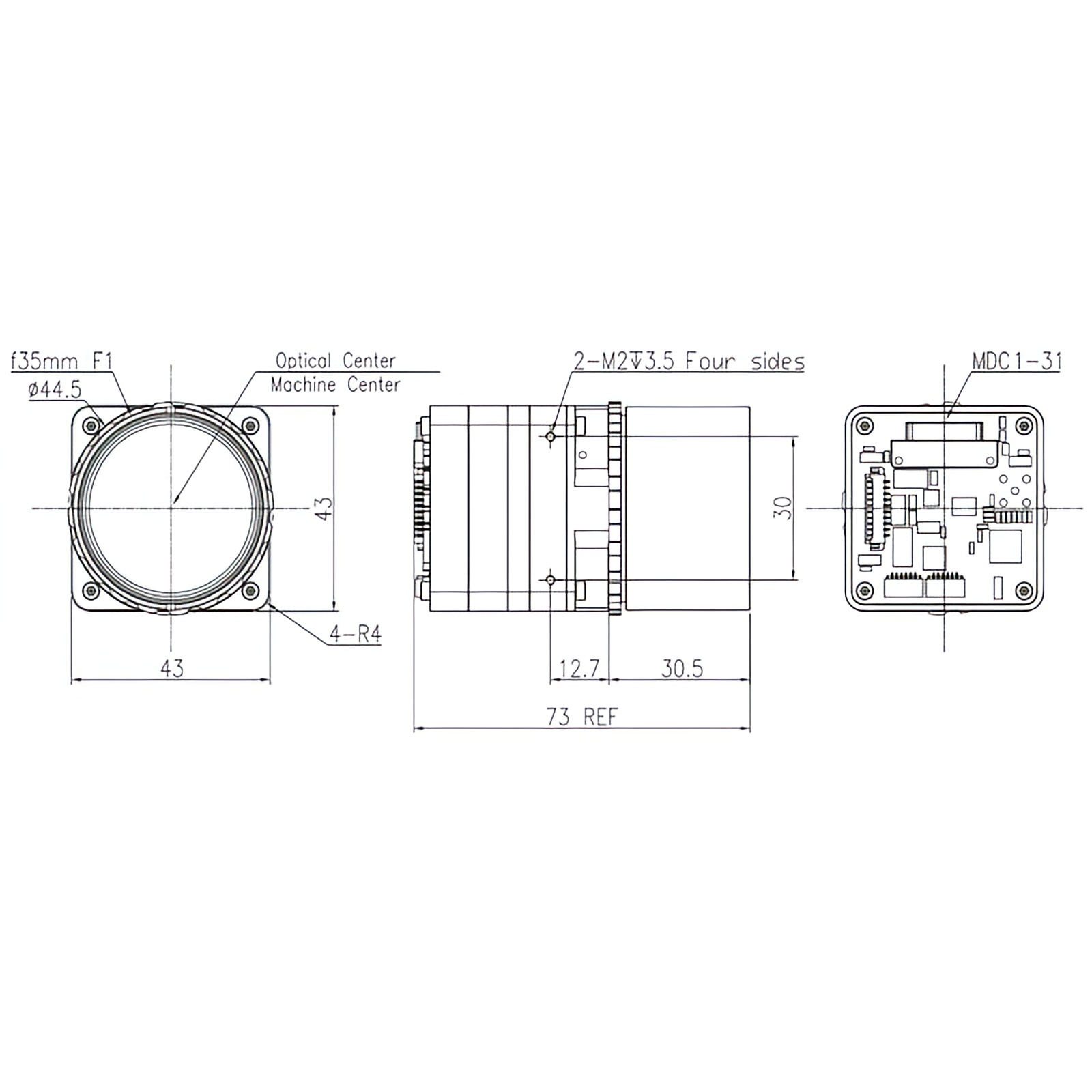

Size: 73x43x43mm

Extensions: Reticles,hot track,lens control(focusing, zooming, auto focus)
