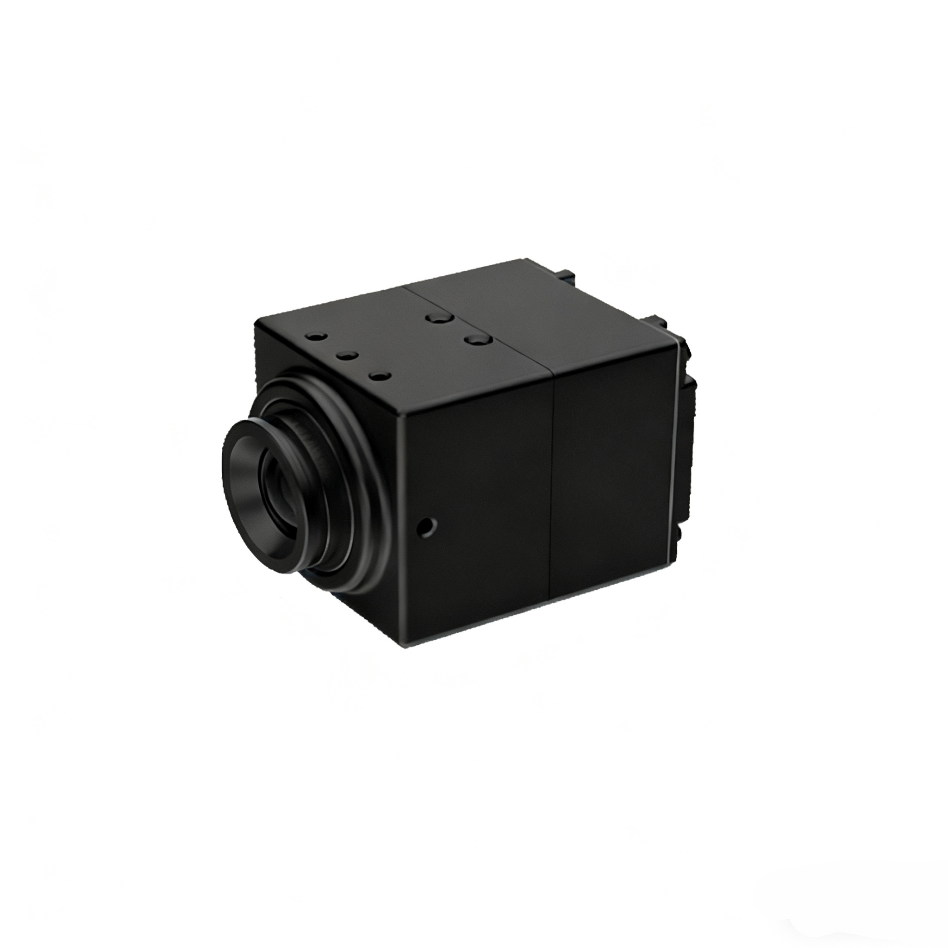

Equipped with a Vox detector, the FAU6403 UAV infrared camera module outputs thermal images in the 8~14μm wavelength band with a high resolution of 640×512. The 12μm pixel pitch and NETD (Noise Equivalent Temperature Difference) of ≤40mK ensure accurate capture of tiny temperature differences. It is compatible with various UAV platforms, and features an IP54 waterproof rating and a wide operating temperature range of -20℃~+50℃, providing stable and reliable infrared observation support for field exploration, search and rescue, maritime operations, and night patrols.

Model: FAU6403

Detector type: Vox

Infrared resolution: 640x512

Pixel pitch: 12 μm

Working wavelength band: 8 - 14 μm

Noise Equivalent Temperature Difference (NETD): ≤ 40 mK @ 25℃, F/1.0

Thermal constant: < 12 ms

Frame rate: 50Hz

Focusing method: Manual focusing

Focal length: 9.1mm

Field of view: 45.76° × 37.3

Detection distance (person): ≤ 859m

Detection distance (vehicle): ≤ 1263m

Identification distance (person): ≤ 214m

Identification distance (vehicle): ≤ 315m

Custom shutter response time: 30 seconds to 180 seconds, interval 10 seconds

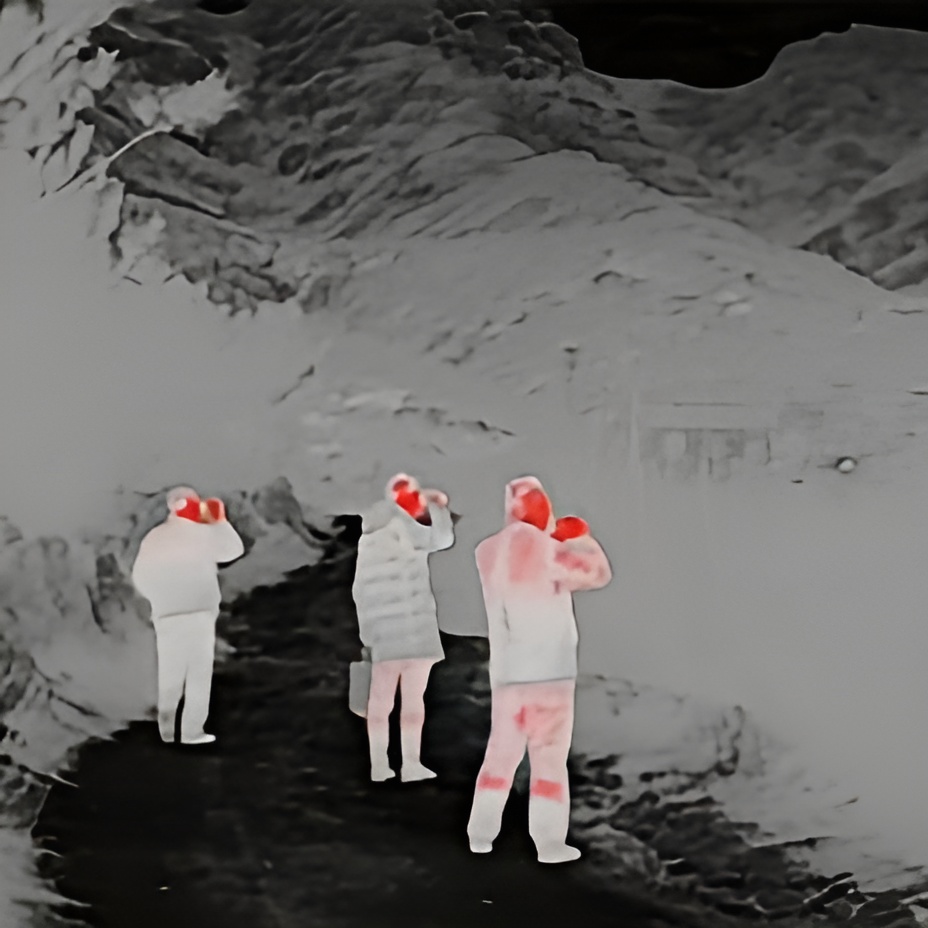

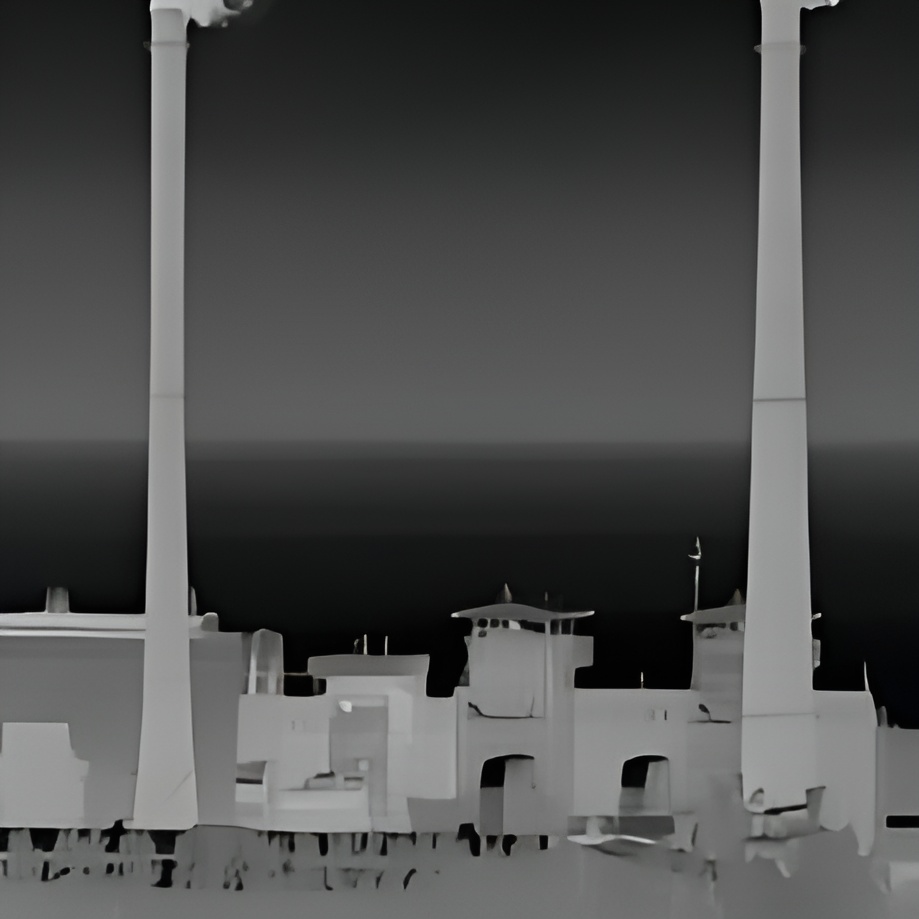

Pseudo-color mode: White heat, Black heat, Rainbow, Hot metal, Yellow saturation, Birdwatching mode (default white heat)

Hotspot tracking: On or off (default off)

Shutter time selection: 30 seconds, 60 seconds, 90 seconds, 180 seconds, custom (default 60 seconds)

Differentiation lines: 7 differentiation lines (default off)

Standard: PAL

Working voltage range: 5.0V to 24.0V

Power consumption/battery capacity: 1.3W (5V/260mA)

Operating temperature: -20℃ to +50℃

Storage temperature: -30℃ to +70℃

Waterproof rating: IP54

Size : 28.4 × 28.4 × 42.4mm

Weight : 65g
