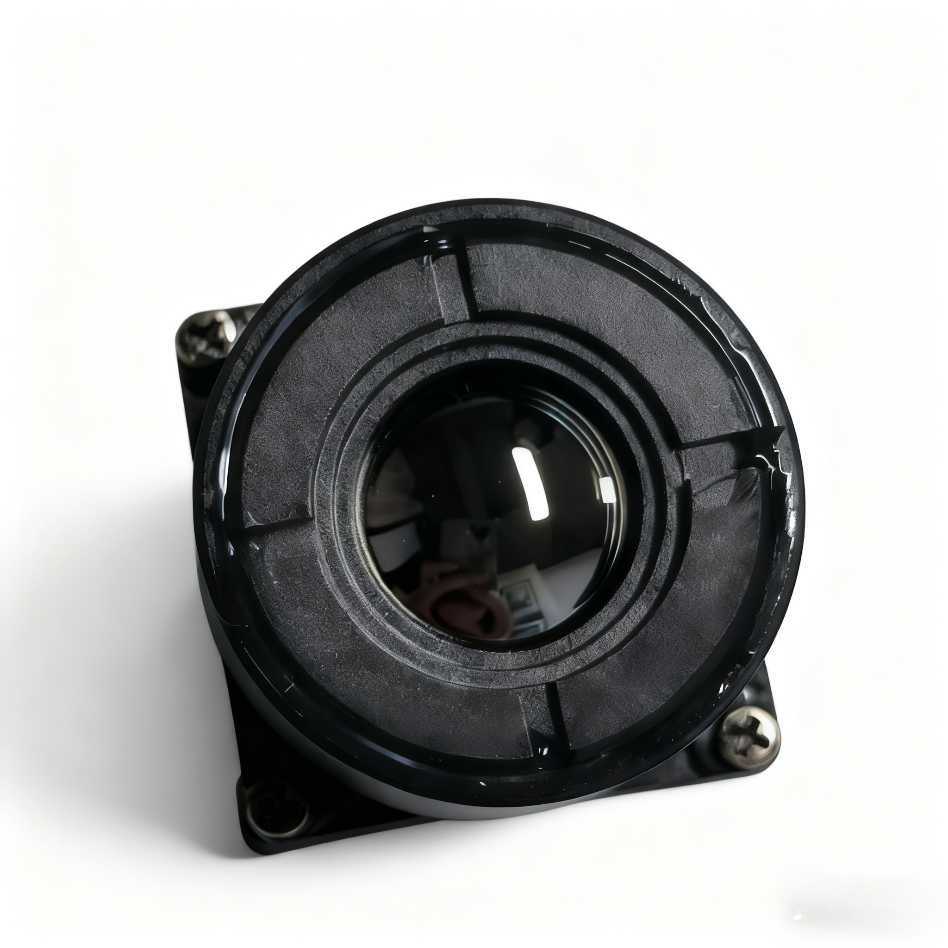

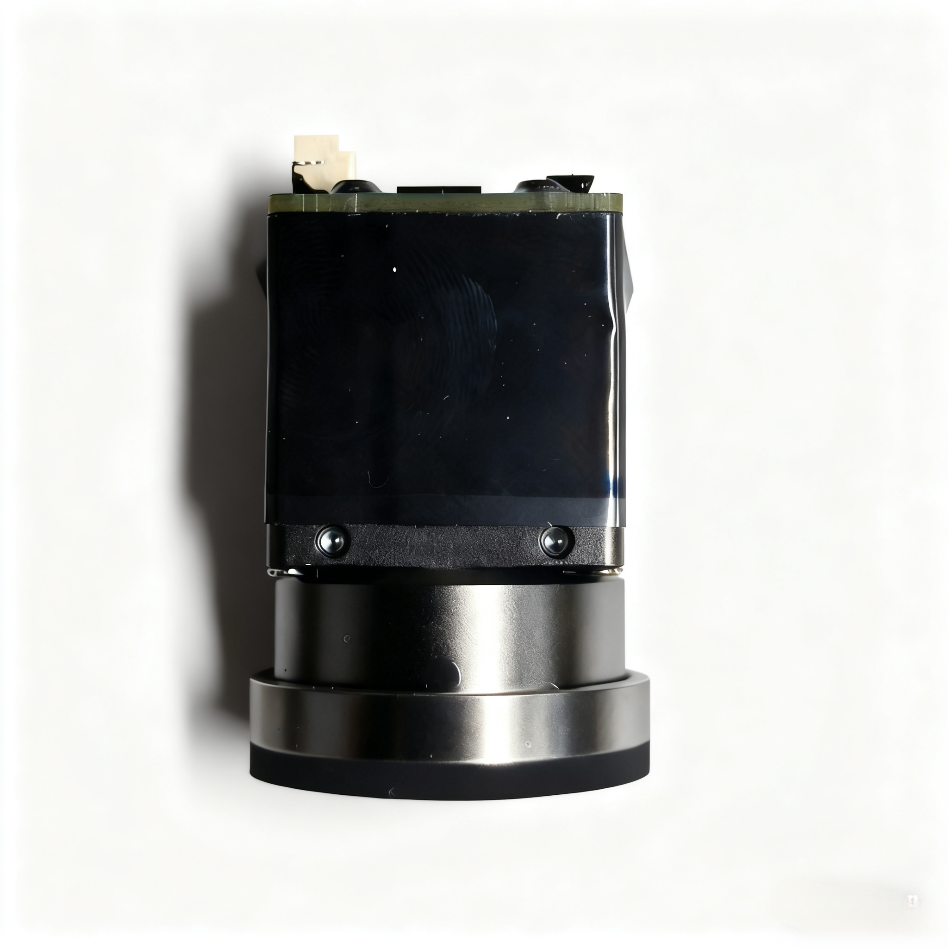

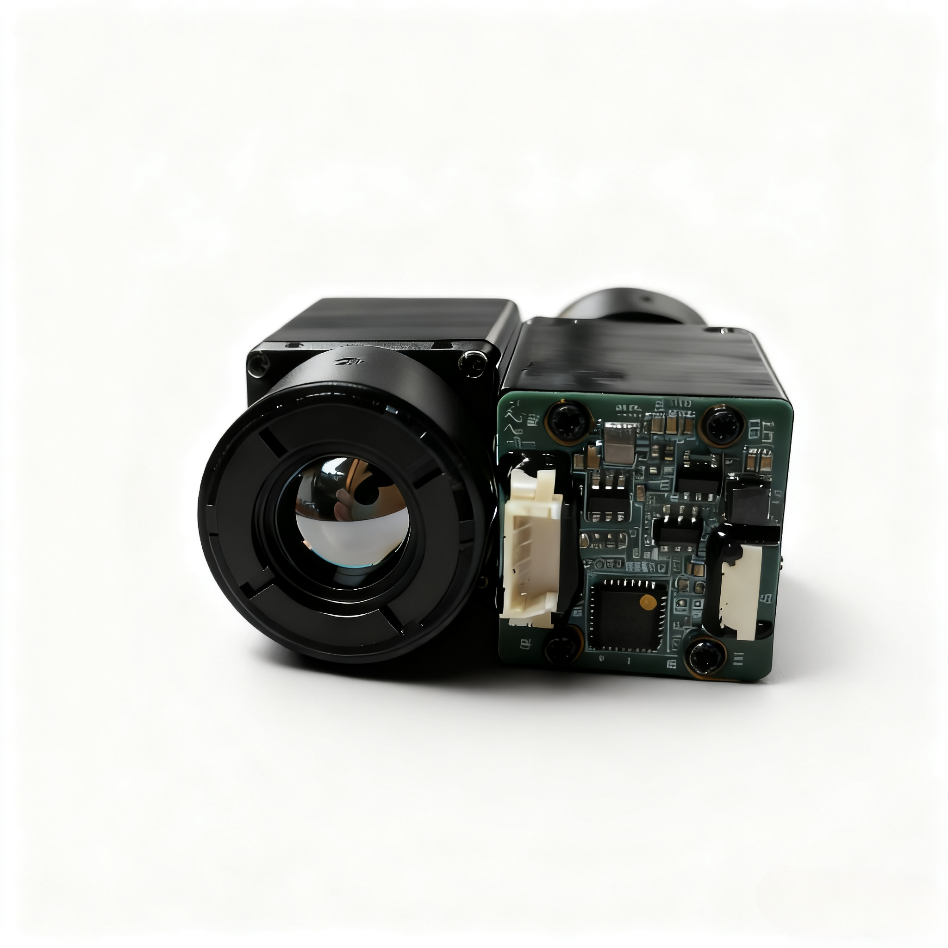

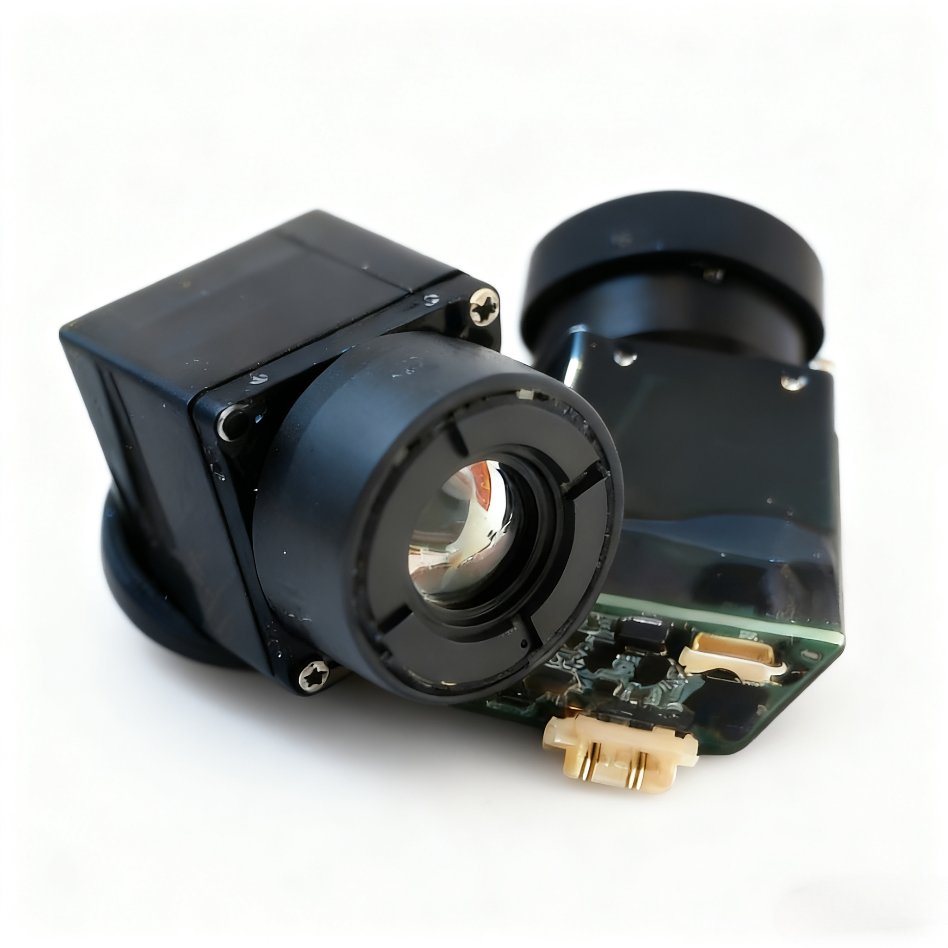

Model: FASST691 Infrared Thermal Imaging Camera

Resolution: 640x512

Frame Rate: 50Hz

Pixel Spacing: 12μm

NETD:≤50mK@25℃

Response band: 8 - 14 μm

Lens focal length: 9.1mm F1.0

Field of view (H*V: 9MM: 48.0° (H) × 38.4° (V))

Polarity (3): Black Hot/White Hot (default)

Power supply voltage: 5V - 16V

Power: ≤ 0.8 W

Output type: CVBS

Analog output format: PAL

Size (without lens): 21mm × 21mm × 39mm

Weight (without lens): ≤ 30g ± 0.6g

Operating temperature: -45℃ to +60℃

Storage temperature: -50℃ to +80℃
