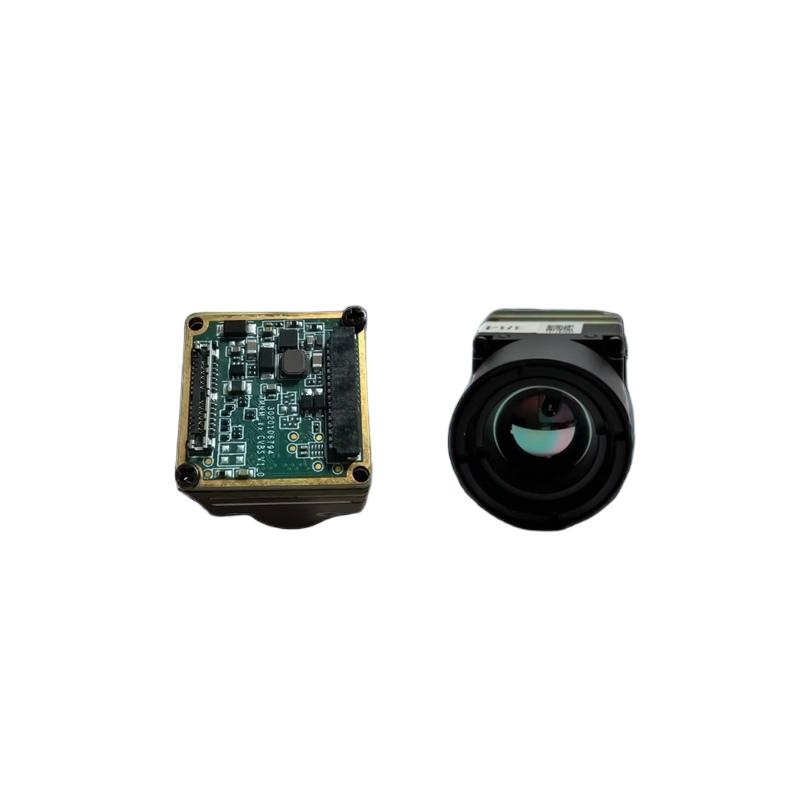

This series of observation-type non-cooled infrared modules include three products with different resolutions: (640×512),  (384×288), and(256×192). They feature high refresh rate detectors and infrared ISP chips, and possess high performance, small size, light weight, low power consumption, and low cost. They can flexibly meet the requirements of various application scenarios.

The modules come with a default algorithm without any lag, ensuring smooth operation and no screen freeze.

Equipped with the latest infrared-specific image algorithm, the image quality is clear and detailed.

The modules provide multiple digital interfaces, allowing for flexible connection to various intelligent processing platforms.

Detector type: Vanadium oxide non-cooled infrared focal plane detector

Resolution: 640×512 / 384×288 / 256×192

Detector frame frequency: 30/60Hz 30/60Hz 25/50Hz

Pixel pitch: 12μm

Response band: 8～14μm

Noise equivalent temperature difference (NETD): ≤40mK @ 25℃, F#1.0, 25Hz

Thermal time constant: <12ms

Analog video: PAL/NTSC

Digital video: DVP/BT656/USB2.0/MIPI

Communication interface: UART/I2C/USB2.0

Power supply input: 5V

Typical power consumption of USB output @ 25℃: <0.7W / <0.42W / <0.35W

Weight (without lens): <8.6g / <7g

Size (without lens): 21×21×10.3mm

Operating temperature: -40℃～+80℃

Storage temperature: -50℃～+85℃
