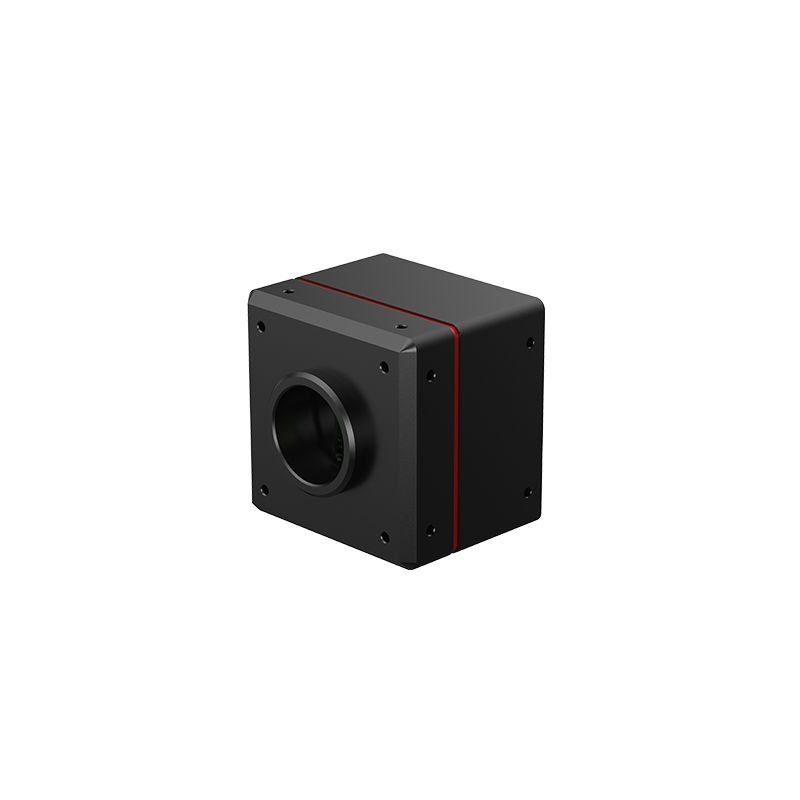

The FNS-101L2 type line-scanning short-wave infrared camera adopts a high-resolution InGaAs linear array detector, has an internal adaptive image processing algorithm, supports high line frequency operation, supports Cameralink or GigE image data interfaces, provides a user-friendly SDK, and supports secondary development. The product features low noise, high line frequency, and low power consumption, and can be widely applied in fields such as agricultural product sorting, resource recycling, industrial sorting, photovoltaic detection, and machine vision.

Model: FNS-101L2

Sensor: InGaAs

Spectral response range: 0.9μm to 1.7μm

Quantum efficiency: >70% (1.0μm to 1.6μm)

Optical fill factor: 100%

Pixel center spacing: 12.5μm

Array size: 1024×1

Effective pixel rate: ≥ 99.8%

Maximum output line frequency: 36kHz

Output data depth: 8bit/14bit

Shortest integration time: 15us

Readout noise (typical value): ≤ 50e@1-36kHz, 20°C

Optional gain: 4 levels

Average pixel dark current: ≤ 100ke/s@20°C

Power supply voltage: Typical 12V

Typical power consumption: <2.5W

Communication interface: GigE or CameraLink

Lens interface: C-Mount

Digital video interface: USB3.0 or CameraLink, optional

Motorry weight: 226g ± 10g

Motorry size: 53×60×60mm³

Operating environment temperature: -20°C to +50°C

Storage environment temperature: -40°C to +60°C

I/O interface: 1 group of differential input/output; 1 group of differential/single-ended configurable input; 1 group of optocoupler single-ended input; 1 single-ended output
