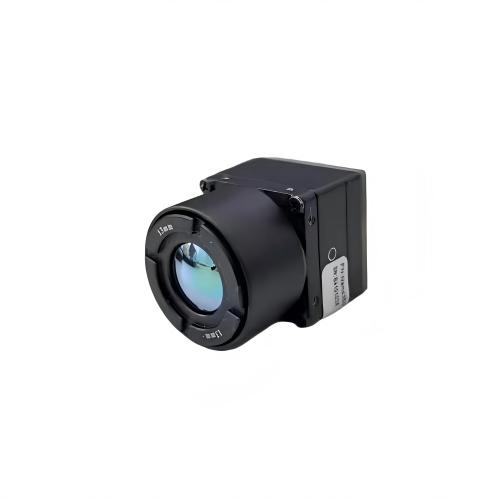

The non-cooled infrared core component is specially designed for applications requiring light weight, small size and low power consumption.

It is a core component with extremely small size, lighter weight and lower power consumption. It supports multiple parallel communication and video output interfaces, and also provides a variety of lightweight infrared lenses for selection.

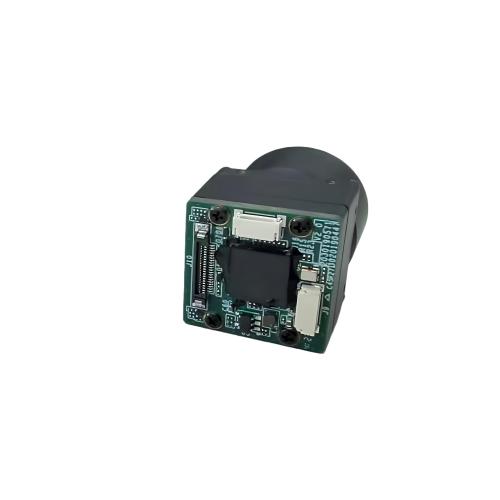

The core is closer to the module state. The traditional user board and the core processing board are combined, supporting customers to develop according to their needs. This series of products can provide complete infrared imaging solutions for micro unmanned aircraft systems, various small handheld telescopes, helmet night vision equipment, and multi-light fusion glasses and other optoelectronic products.

Resolution: 640*512

Effective Frame Rate:50Hz

Spectral Band:8～14μm

Dimensions (without lens): 21mm*21mm*12mm

Weight (without lens):10.5g±0.6g
