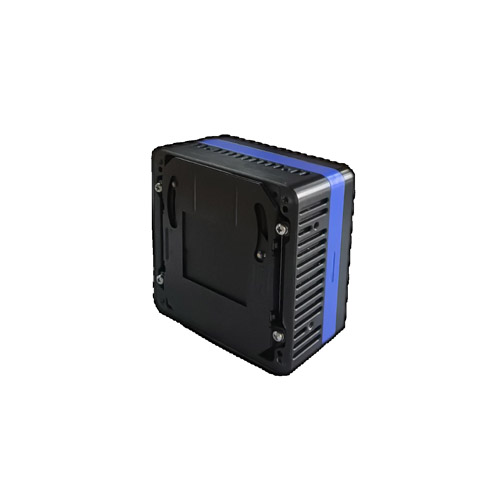

FA1280C01B High-End Uncooled Module

Adopting a ceramic packaging design, it features excellent heat dissipation and structural stability. Equipped with a 1280*1024 ultra-high-definition resolution detector, combined with a 12μm compact pixel pitch and a 50Hz high frame rate, it can capture micron-level thermal imaging details with precision, deliver dynamic images without motion blur and with exceptional smoothness, and meet the high-definition thermal imaging requirements in high-end scenarios. It boasts significant core performance advantages.

Product Model: FA1280C01B

Name: High-end Infrared Module with Non-cooled Ceramic Package

Resolution: 1280*1024

Pixel Pitch: 12 μm

Detector Frame Rate: 50Hz

Response Band: 8 - 14 μm

Noise Equivalent Temperature Difference (NETD): ≤ 50 mK @ F1.0, 300K

Non-uniformity Correction: Shutter Correction / Background Correction

Minimum Resolvable Temperature (MRTD): ≤ 300 mK

Operating Temperature Range: -40℃ ~ +60℃

Storage Temperature Range: -45℃ ~ +65℃

Weight: ≤ 150g
