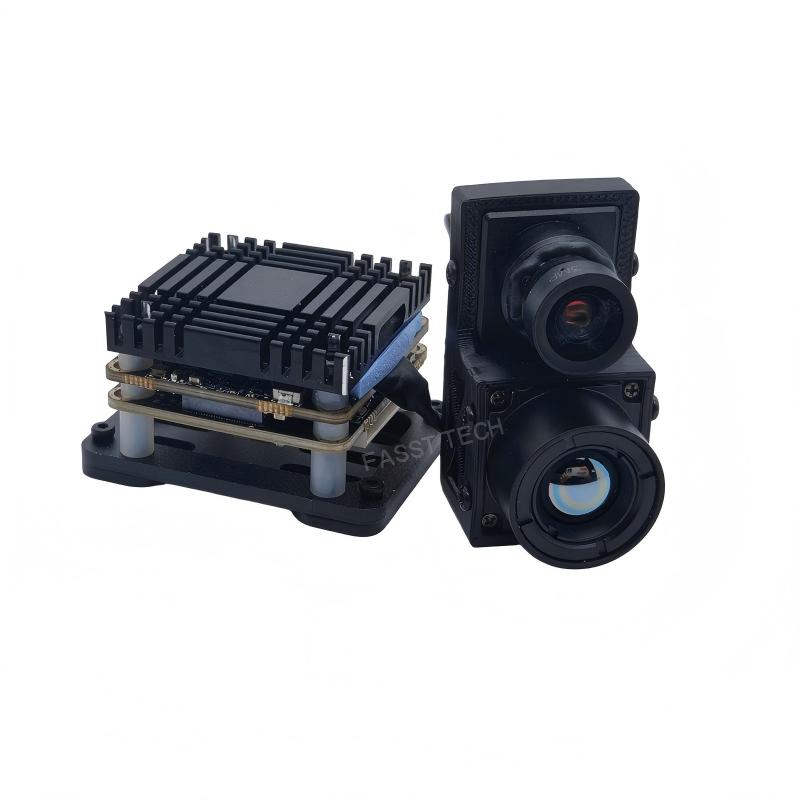

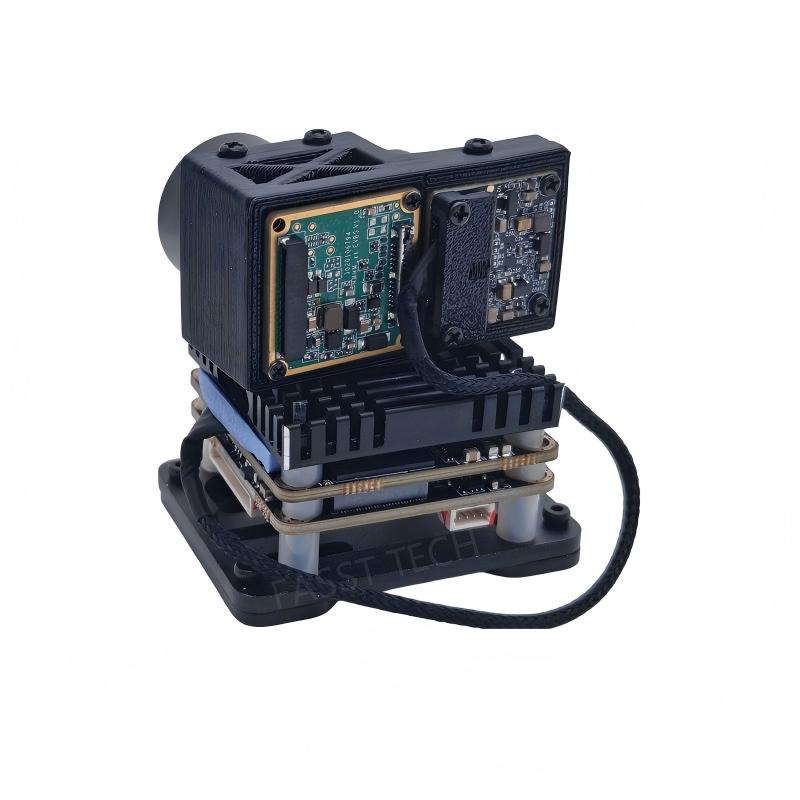

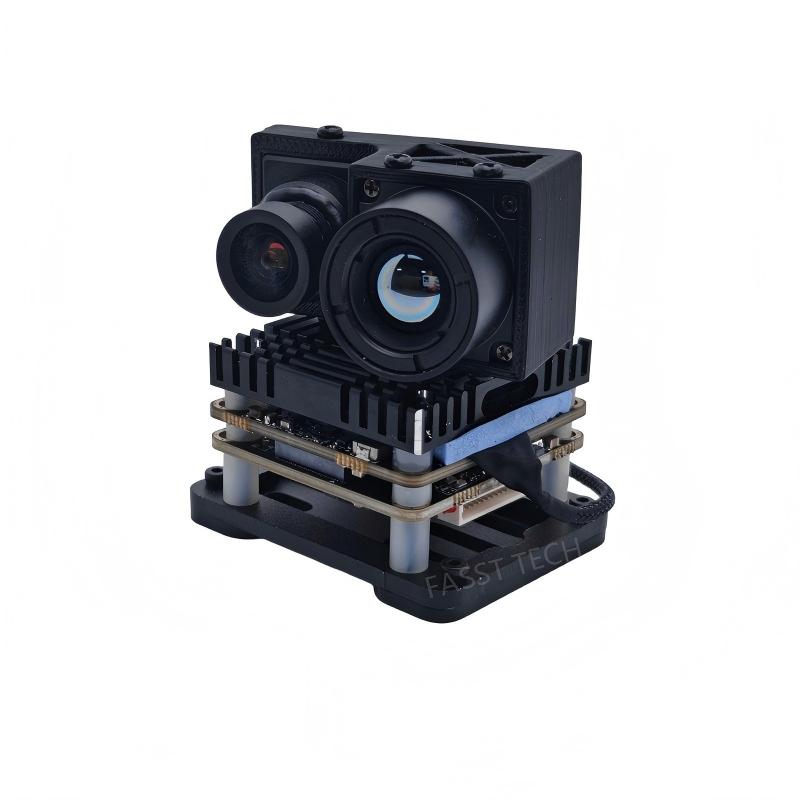

FAIC102 is a high-performance drone vision & flight control module. With advanced AI algorithms, it achieves accurate target detection and stable tracking. It ensures reliable all-weather flight in complex environments and supports seamless connection with mainstream flight controllers.

AI Module,Vision & Flight Control,Target Detection & Tracking,Dual-Spectrum,Single Visible Light,Intelligent Recognition,UAV Surveillance,

Outdoor Observation.

Model: FAIC102 (Single Visible Light Version)

Ultra-low Latency: 30ms

Maximum Dynamic Target Tracking Speed: 140km/h

Intelligent Tracking: Supports crosshair blurring and close-range locking

Trajectory Prediction & Memory Tracking: Dual tracking mechanism with trajectory prediction and feature memory

Maximum Recognizable Targets: 60 targets

Picture-in-Picture (PIP): Supported

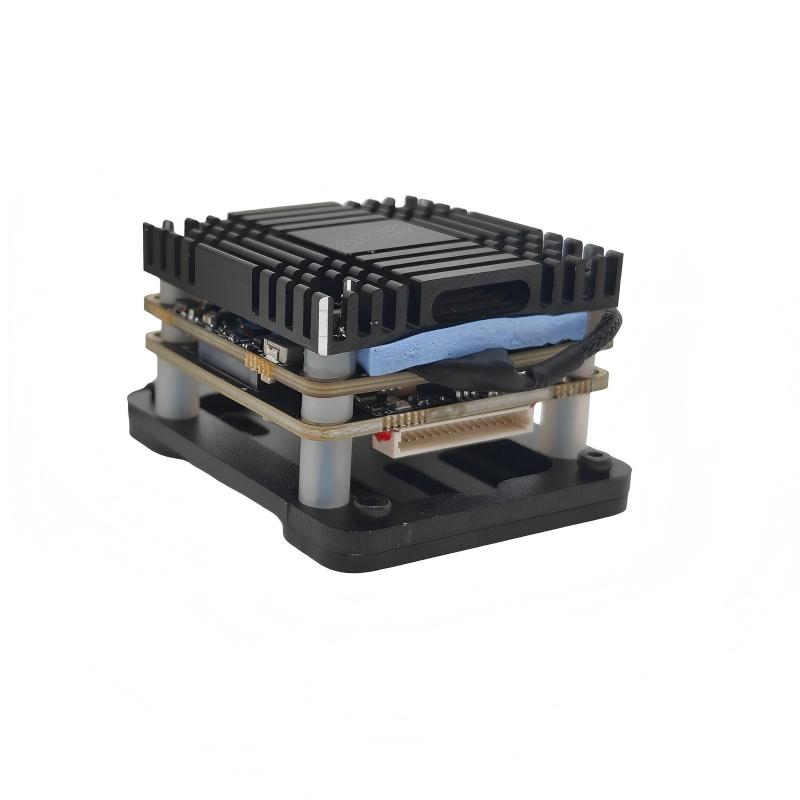

AI Image Processing Board

Main Computing Power (TOPS): 4

Control Protocol: CRSF

Compatible Firmware: BetaFlight / ArduPilot

Input Voltage: 9-16V

Dimensions (L×W×H, mm): 38×38×24.5

Mounting Hole Spacing (mm): 25.5×25.5

Visible Light Lens

Sensor Size: 1/2.8 Inch

Focal Length: 3.3mm

Field of View (FOV): Diagonal 125° / Horizontal 105° / Vertical 105°

Low-Light Performance: 0.005lux

Video Input Format: 720*576 @50Hz

Camera Dimensions (L×W×H, mm): 24.16×14×14
