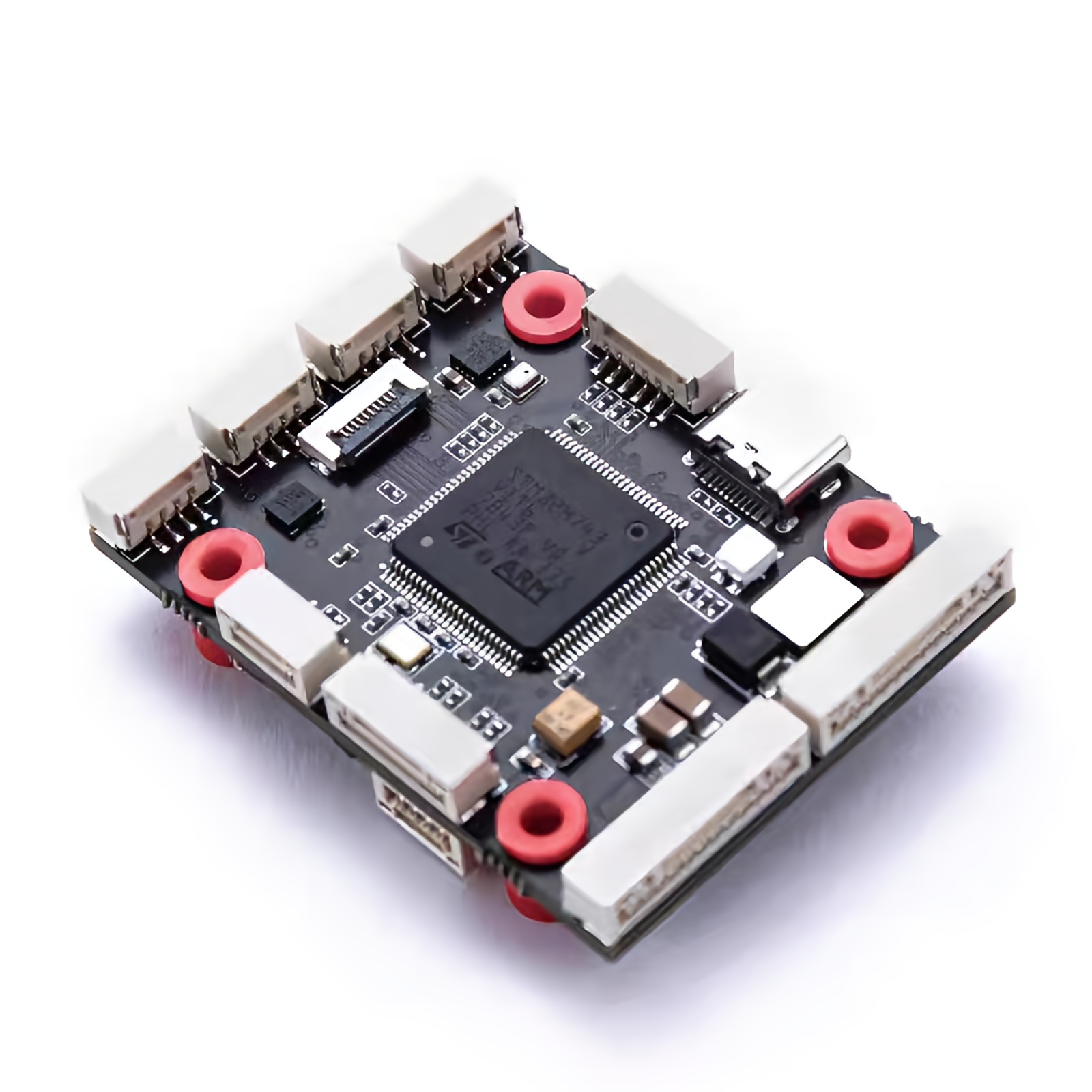

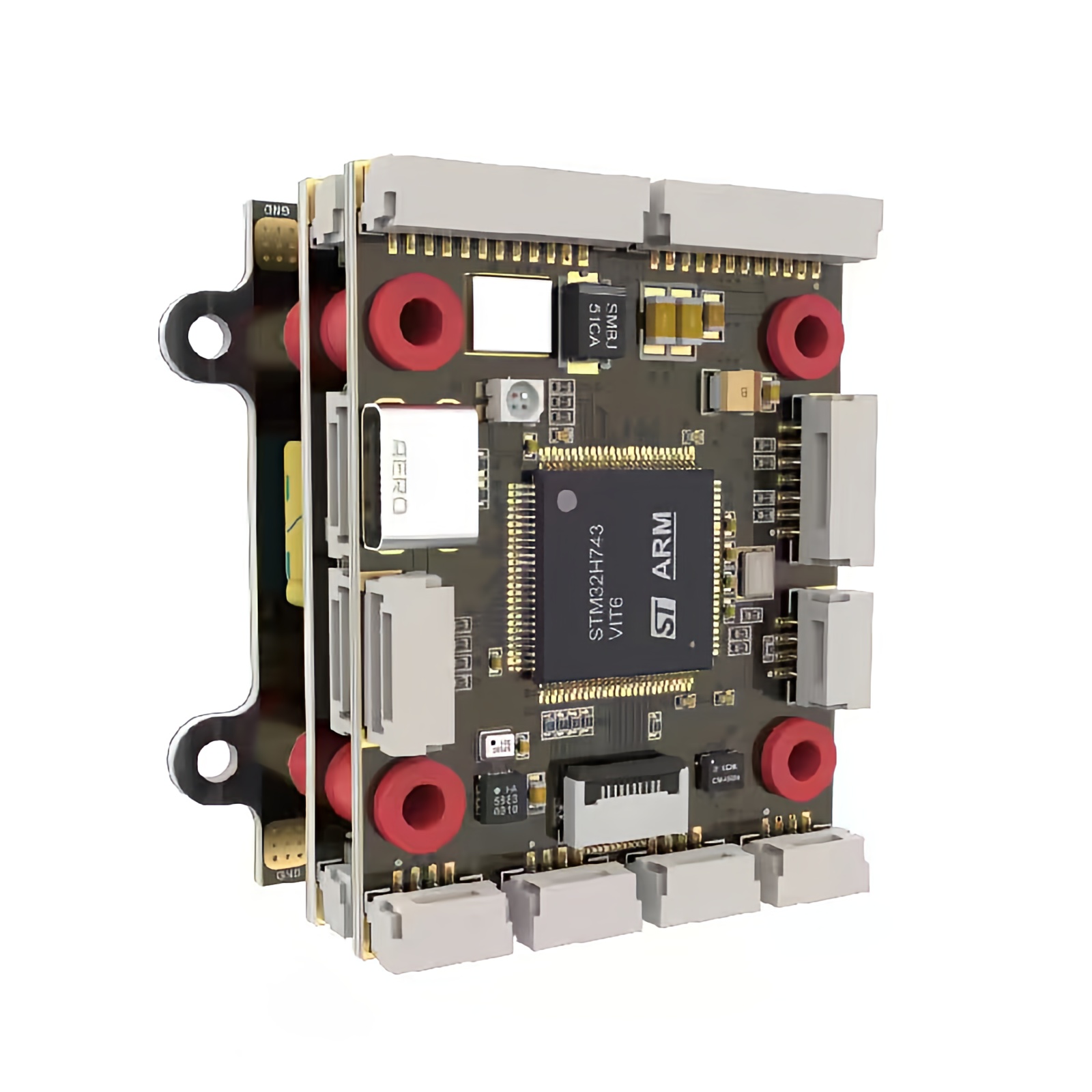

FASST H7 Flight Controller

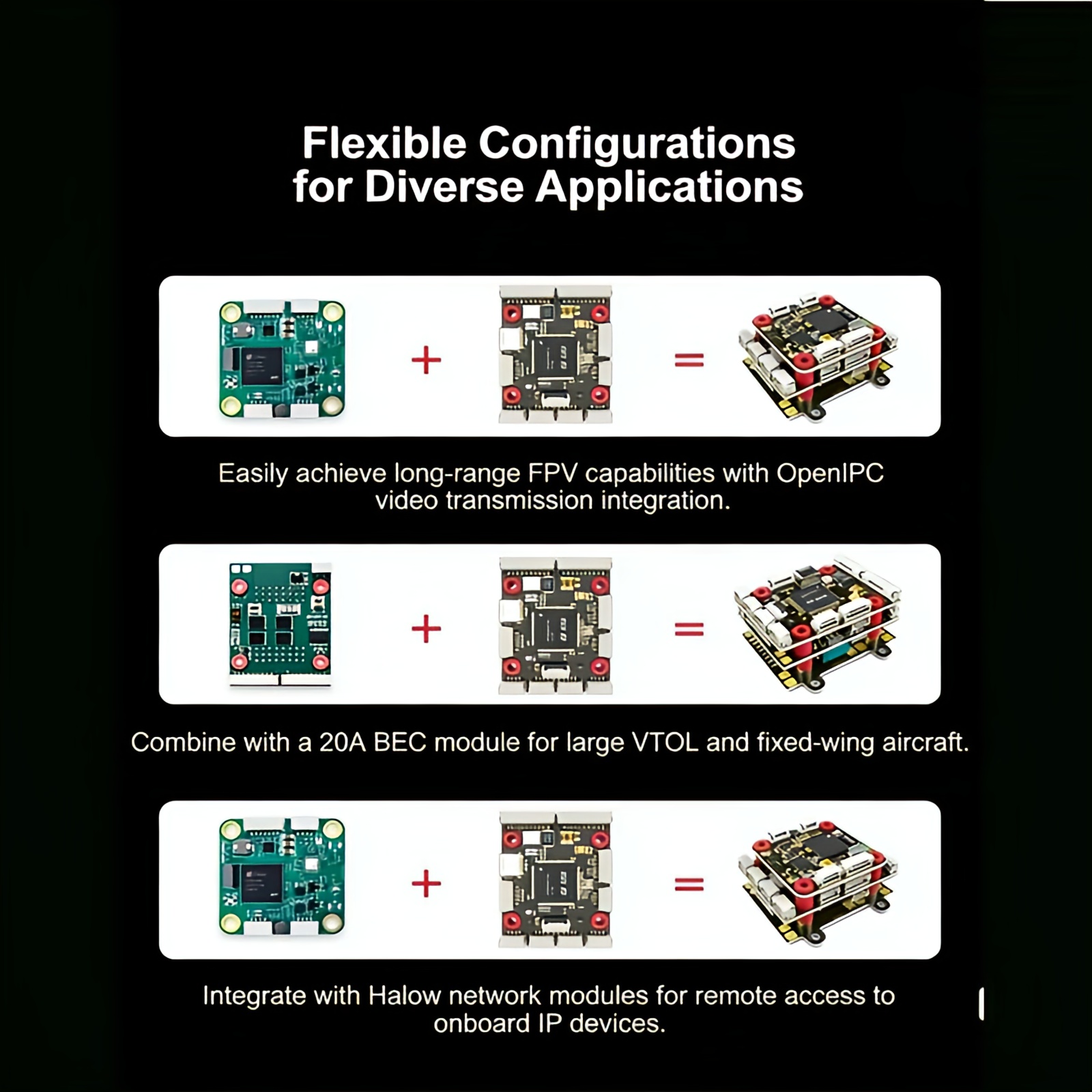

FPC Expansion Interface: The Ardupilot firmware includesbuilt-in support for ADIS16470, ICM45686, RM3100, and lMUheating functionality, enabling seamless upgrades toindustrial-grade performance with straightforward installation

Industrial Drone,  Flight  Control,Industrial GradePer formance,

Precision UAV Operations,FPV,FASST H7 Flight Controlle,

Industrial-grade UAV Flight Control,Flight Controller Module

Model: FASST H7

Processor: STM32H743VIT6

Onboard IMU: ICM42688

Onboard Magnetometer: QMC5883L

Onboard Barometer: BMP280

External IMU: ADIS16470 ICM45686

VBAT Input Votage (POWER_A): 4-12S 60VMAX

POWER_B Input Voltage: 5-5.2V (Power to the flight controller when voltage > 5V)

BEC1: 5V, 1.2A limit for peripheral power (changeable to 3A MAX)

BEC2: 5V/12V, 3A MAX for high-defnition link power (requires heat dissipation)

Power Redundancy: When POWER B < 5V, VBAT powers the flight controller

Output Channels: 16 PWM channels, with the first 8 supporting bi-directional Dshot

Serial Interfaces: 7 Serial Ports

CAN Interfaces: 2 CAN outputs, with CAN1 featuring a built-in transceiver

IIC Interfaces: 2 IIC buses, with FPC interface for lic1 and GH interface for IIC2

GPIO Interfaces: 3-level signal output

ADC Inputs: 4 ADC input channels

SPl Interfaces: SPI4 for connecting external ADlS16470 ICM45686
