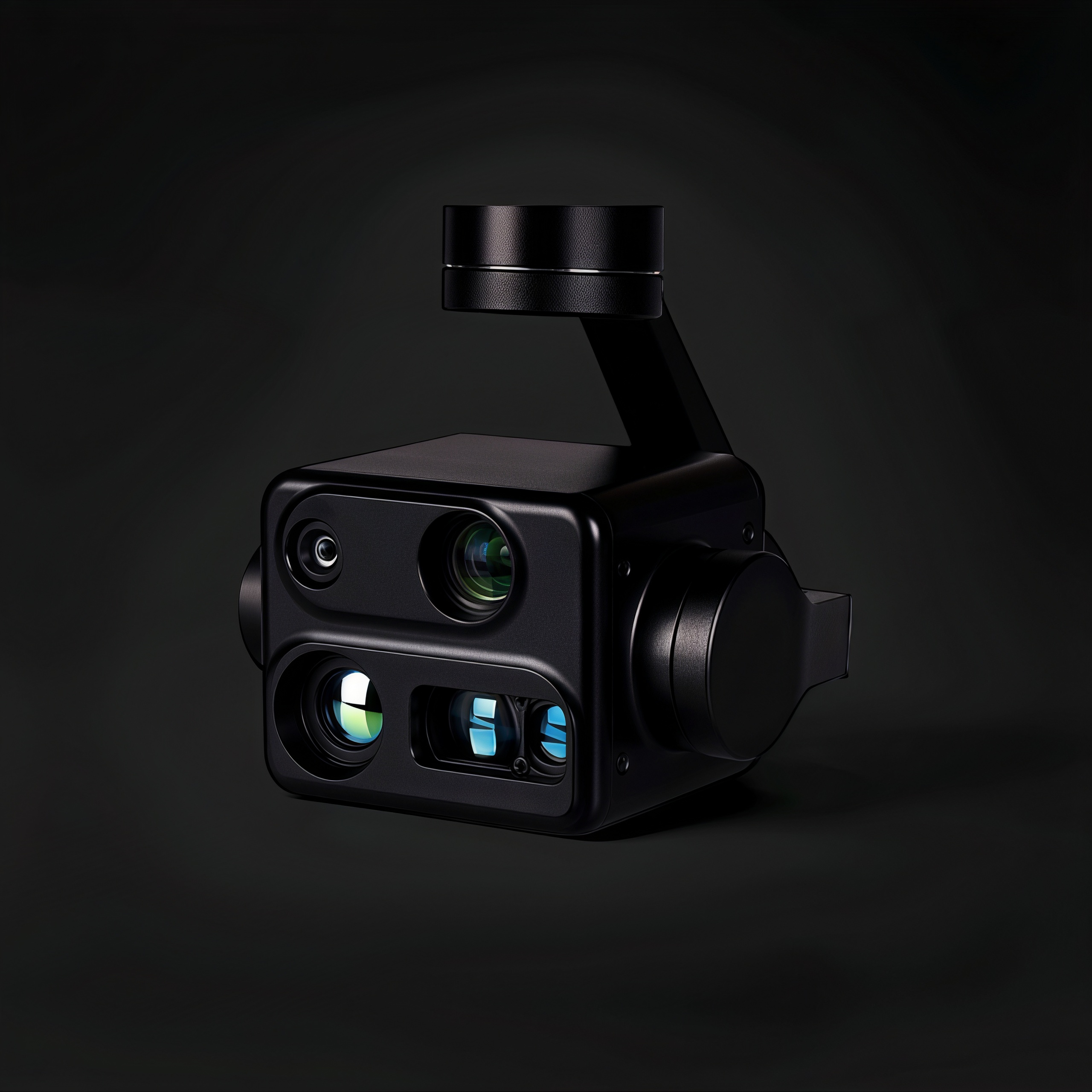

FASST2812AI Camera is equipped with an open AI model conversion and deployment platform based on 6TOPS-Computility. It provides multiple recognition functions for people, vehicles, and ships, target tracking, fire investigation, and face/plate recognition at the edge computing of the pan-tilt camera, and offers various customized models for various tasks.Can be applied to traffic safety, maritime warnings, target tracking, etc.

Model: FASST2812AI

Size: 1/2 inch CMOS

Pixels: 48MP

Resolution: 4000(H) x 3000(W) 8000(H) x 6000(V)

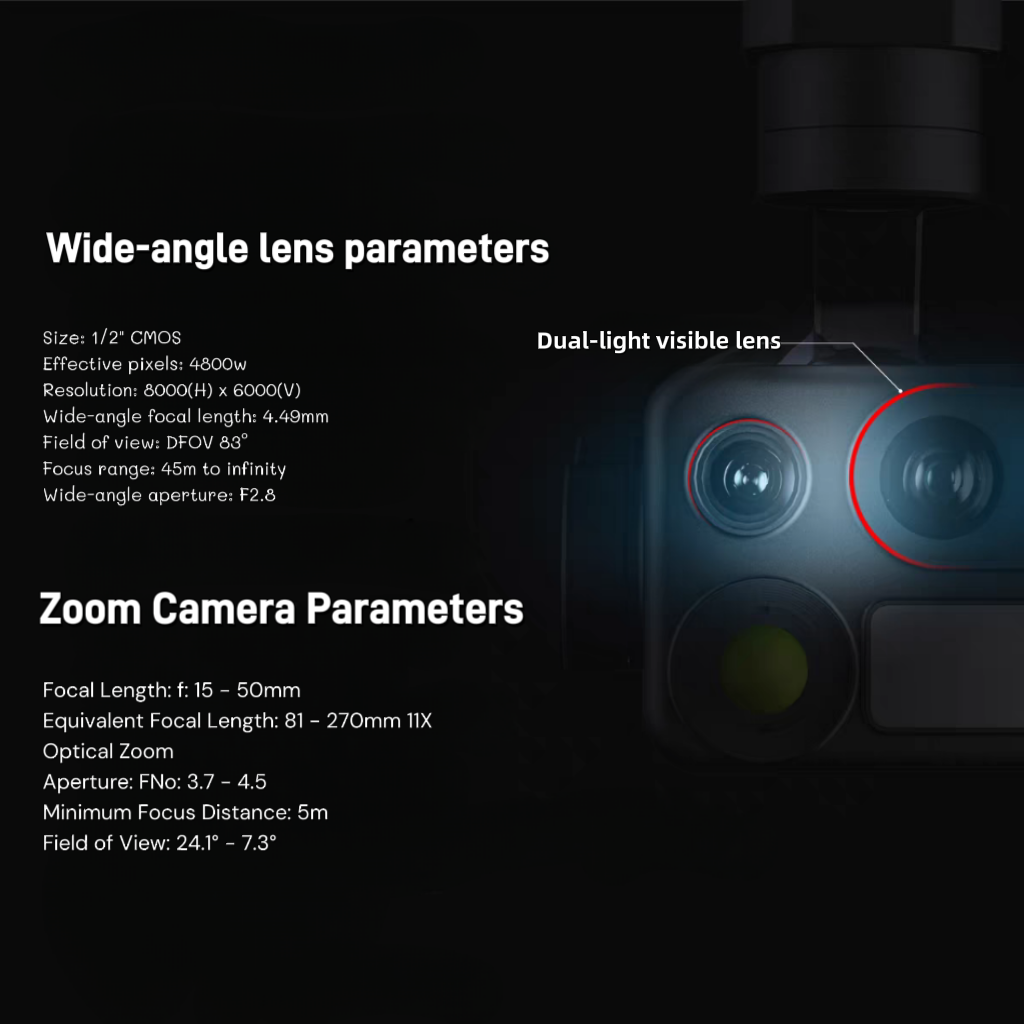

Focal Length: f: 15 - 50mm  Equivalent Focal Length: 81 - 270mm

Aperture: FNo: 3.7 - 4.5

FOV (Diagonal): 24.1° - 7.3°

Video/Photo Formats: H.265/H.264/JPEG/JPG/MP4 Storage: Supports microSD cards with a capacity up to 128G

Agreement: HTTP, RTSP, TCP, UDP Artificial Intelligence: AI Recognition and Tracking

Video resolution: 30 frames per second (4000x3000) (12M)

Photo resolution: 12m/20m/24m/48m

Signal-to-noise ratio: ≥55dB (AGC off, light on)

Lighting: Color: 0.1Lux/F1.5, Monochrome: 0.01Lux/F1.5

Vibration compensation: Supports digital stabilization mode

White balance: Automatic, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fixed/Auto 1 Outdoor Auto)

AF mode: Manual/Auto/One-Shot Auto Focus

Working environment: -20°C to +70°C / 20% to 80% RH

Storage environment： -40°C to +70°C / 20% to 95% RH

Spectrum: 8μm - 14μm

Resolution: 640x512

Sensor size: 12*12μm

Focal length: 13.1mm (equivalent focal length 56mm)

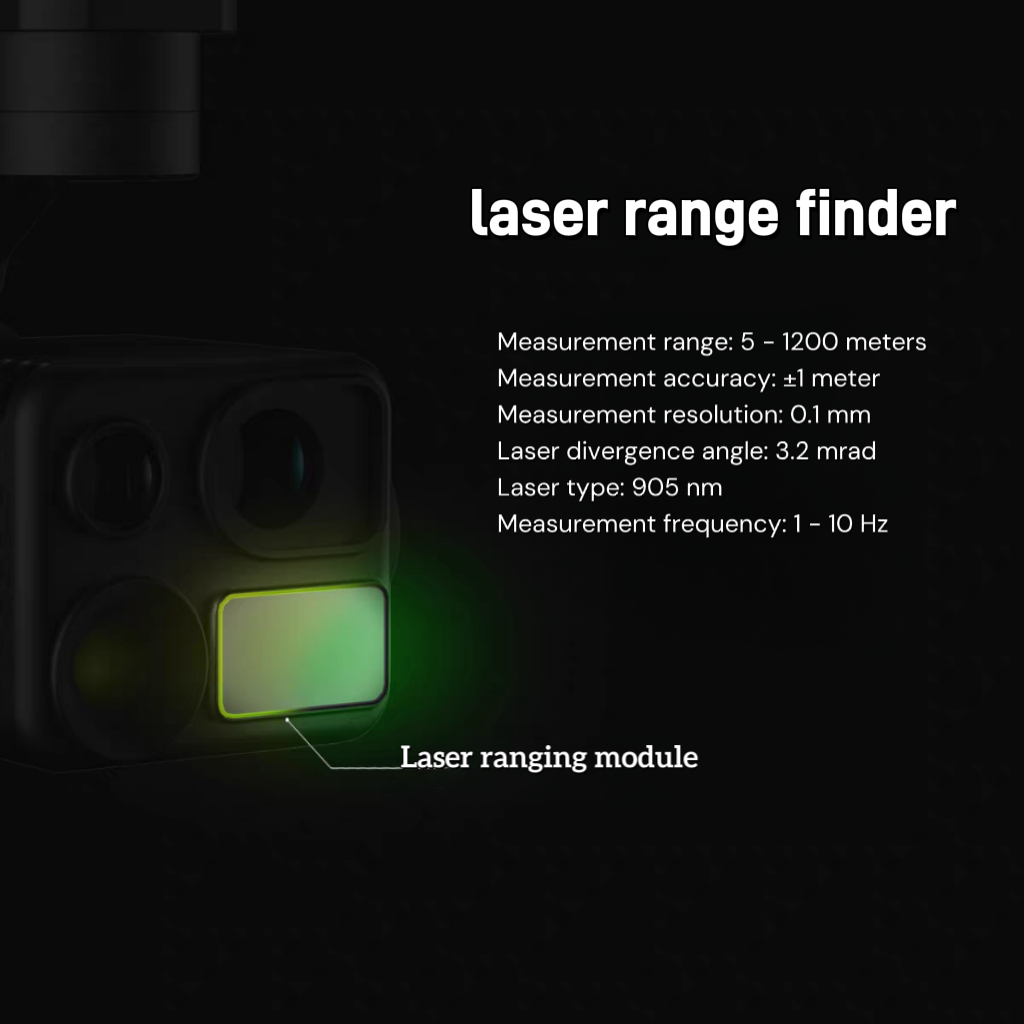

Net: ≤50mK @ f1.0 (@25°C) Laser rangefinder range: 3 - 1200 meters

Laser rangefinder resolution: 0.1 meters

Laser rangefinder measurement accuracy: 1 minute

Laser rangefinder wavelength: 905 nanometers

Laser rangefinder beam divergence angle: 3.2 MRAD

Laser rangefinder accuracy: ±1 meter in precision

Operating voltage: 12V

Protocol: UARTIMOLD/UDPIS.BUS bus

IEC60529 standard: IP44 protection level
