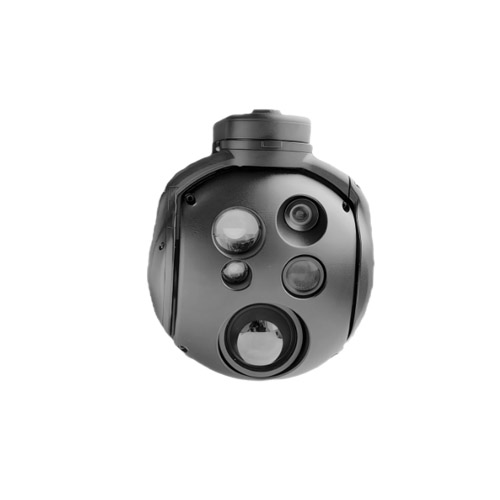

FASST403 micro three-light aiming pod integrates wide/narrow field-of-view visible light cameras, infrared thermal imagers, and laser rangefinders (optional). It is mainly used for observing, identifying, capturing, tracking and measuring distances of targets such as vehicles and personnel, and reporting the images, angles, angular velocities and distance information of the targets.

Infrared light detector: 640×512 @ 50fps non-cooled infrared

Infrared light field of view (focal length): 14.6° × 11.7 (30mm)

Wide field of view visible light resolution: 3840×2160 @ 50fps

Wide field of view visible light field of view (focal length): 38.4° × 22.2° (8mm F1.9 lens) can be continuously zoomed 8 times

Narrow field of view visible light resolution: 1920×1080 @ 50fps

Narrow field of view visible light field of view (focal length): 12.7° × 7.2° (25mm)

Distance measurement range: For a 4m×6m vehicle: 15m~3000m

Distance measurement accuracy: ±2m

Distance measurement frequency: ≤5Hz

System type: Two-axis gyroscope stabilization

Operating range: Azimuth: -150°~+150°; Pitch: -90° ~ +30°

Angle measurement accuracy: ≤0.3°

Maximum angular velocity: ≥60°/s

Maximum angular acceleration: ≥100°/s²

Stability accuracy: ≤0.2mrad (1°/2Hz) (1σ)

Maximum frequency: 50Hz

Tracking speed: ±48 pixels/frame

Target recognition type: Vehicles, upright humans

Maximum output target quantity: 64

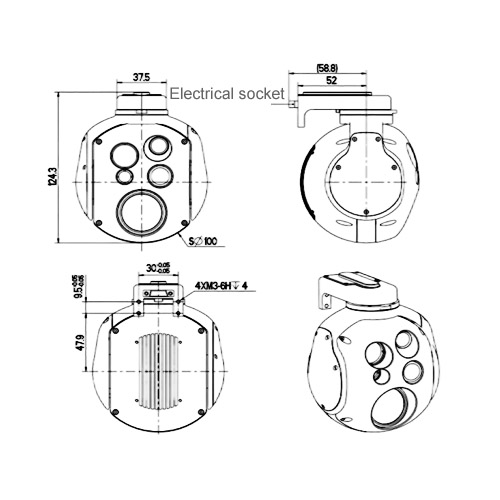

Size: ≤Φ102mm × 126mm

Weight: ≤580g
